0022122084
| Manufacturer | |
| Description | Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Bulk Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 8POS .100 R/A GOLD |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 4/Contact |
| Voltage - Input (Min) | 250V | ||
Mechanical
| Color | White | Depth | 12.83 |
| Pitch | 2.54 mm | Height | 6.35 |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Friction Lock |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 20.32 |
| Number of Contacts | 8 | Number of Positions | 8 |
| Contact Length - Mating | 0.264" (6.70mm) | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Industry Aliases | 22-12-2084, 22122084 | Number of Positions Loaded | All |
Environmental
| Ingress Protection | - | Operating Temperature | - |
Documents & Media
Similar Parts
0022152086
molex
Conn Socket Strip RCP 8 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 8POS .100 R/A PCB
0022142084
molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
0022012085
molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 8POS .100 W/RAMP/RIB
0022013087
Molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 8POS .100 W/RAMP/RIB
14-56-2081
molex
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 8POS .100 GOLD 24AWG
0022182081
Molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
22-01-2081
molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,8w Headers & Wire Housings 8 CKT TERM HOUSING CONNECTOR, HOUSING, RECEPTACLE, 8POS, 2.54MM .100 TERMINAL HOUSING; W/O LOCK RAMP; 8 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 8 路 直 母 电缆安装 压接连接器外壳

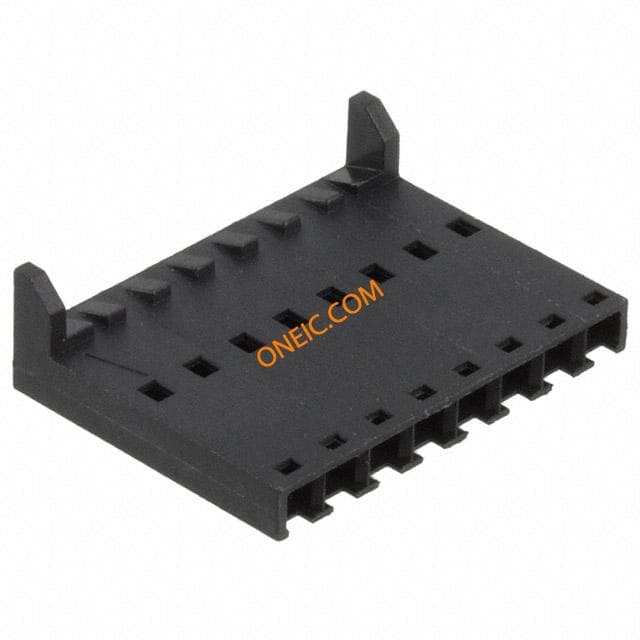

0050579508
