点击放大查看
0022035035
| Manufacturer | |
| Description | Conn Shrouded Header HDR 3 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 3POS 2.5MM VERT TIN |
| Category |
Business
| Lead Time | 57 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Depth | 4.9 mm | Pitch | 2.5 mm |
| Height | 5.9 mm | Packaging | Bag |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin Over Copper |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Nylon 6/6 |
| Length - Overall | 9.9 mm | Number of Contacts | 3 |
| Number of Positions | 3 | Contact Length - Mating | 0.138" (3.50mm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Industry Aliases | 22-03-5035, 22035035 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0050375033
molex
Conn Housing RCP 3 POS 2.5mm Crimp ST Bag CONN HOUSING 3POS 2.5MM SHROUD

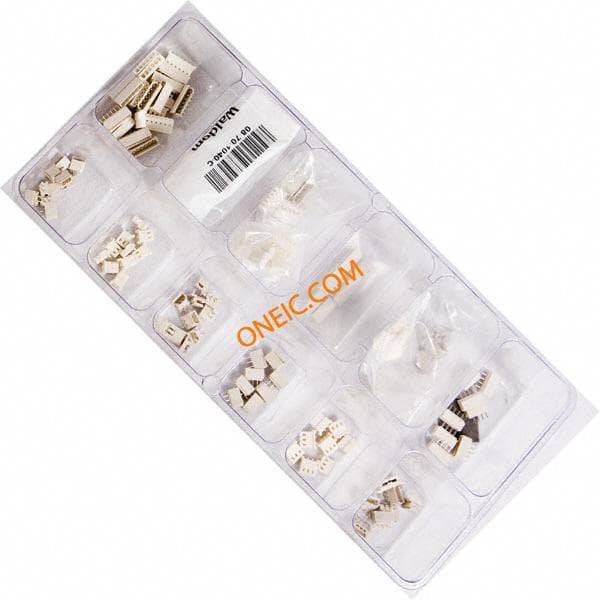

76650-0167
