0022035025
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 2POS 2.5MM VERT TIN |
| Category |
Business
| Lead Time | 54 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Supply (Min) | 250V | ||
Mechanical
| Depth | 4.9 mm | Pitch | 0.098" (2.50mm) |
| Height | 5.9 mm | Packaging | Bag |
| Termination | Solder | Contact Form | Male Pin |
| Contact Type | Male Pin | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon 6/6 | Length - Overall | 7.4 mm |
| Height Above Board | 0.138" (3.50mm) | Number of Contacts | 1 |
| Number of Positions | 2 | Contact Length - Mating | 0.138" (3.50mm) |
| Number of Positions/Bay/Row | All | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | SPOX™ 5267 | Industry Aliases | 22-03-5025, 22035025 |
| Output Configuration | Through Hole | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0050375023
molex
Conn Housing RCP 2 POS 2.5mm Crimp ST Bag Conn Housing F 2 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 2.5MM SHROUD

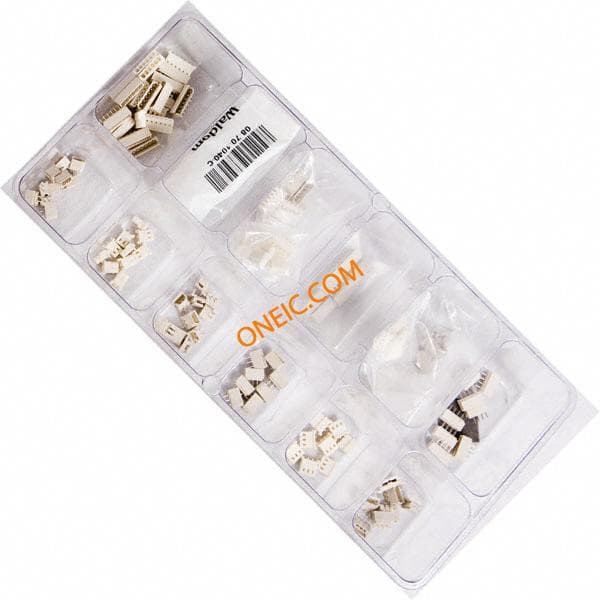

76650-0167
