点击放大查看
0022032081
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 8POS .100 VERT TIN |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 4/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | White | Depth | 2.34 mm |
| Pitch | 2.54 mm | Height | 10.79 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 20.07 mm |
| Number of Contacts | 8 | Number of Positions | 8 |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 200µin (5.08µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Industry Aliases | 22-03-2081, 22032081 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0022152086
molex
Conn Socket Strip RCP 8 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 8POS .100 R/A PCB
0022142084
molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
0022012085
molex
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 8POS .100 W/RAMP/RIB
76650-0009
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V 22-30 WIRE SIZE KIT CONN KK SERIES ASSORTED Headers & Wire Housings .100KK CONNECTOR KIT PREM CRIMPTOOL 184PC COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle, with Extraction and Premium Crimp ToolKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:184 kk-100 connector kit KK .100 Header & Housing kit with extraction tool and premium crimp tool
0022013087
Molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 8POS .100 W/RAMP/RIB
14-56-2081
molex
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 8POS .100 GOLD 24AWG
0022182081
Molex
Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 8POS .100 VERT PCB
22-01-2081
molex
Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,8w Headers & Wire Housings 8 CKT TERM HOUSING CONNECTOR, HOUSING, RECEPTACLE, 8POS, 2.54MM .100 TERMINAL HOUSING; W/O LOCK RAMP; 8 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 8 路 直 母 电缆安装 压接连接器外壳

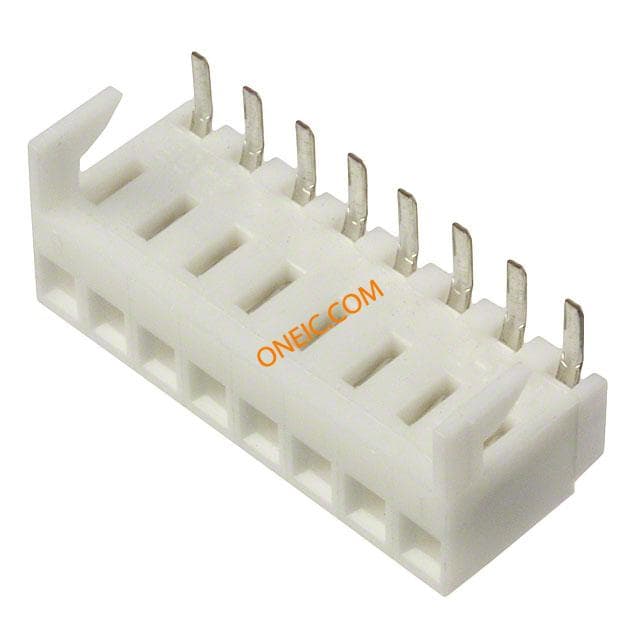

0038001338
