0022032041
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 4POS .100 VERT TIN |
| Category |
Business
| Lead Time | 36 Days | Subcategory | Connector Headers and PCB Receptacles |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 4/Contact A |
| Voltage - Input (Min) | 250V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | White | Depth | 2.34 mm |
| Pitch | 2.54 mm | Height | 10.79 mm |
| Packaging | Bag | Termination | Solder |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Copper | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 9.91 mm |
| Number of Contacts | 4 | Number of Positions | 4 |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 200µin (5.08µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Industry Aliases | 22-03-2041, 22032041 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0022012045
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 4POS .100 W/RAMP/RIB
0050579004
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Bag CONN HOUSING 4POS .100 SINGLE

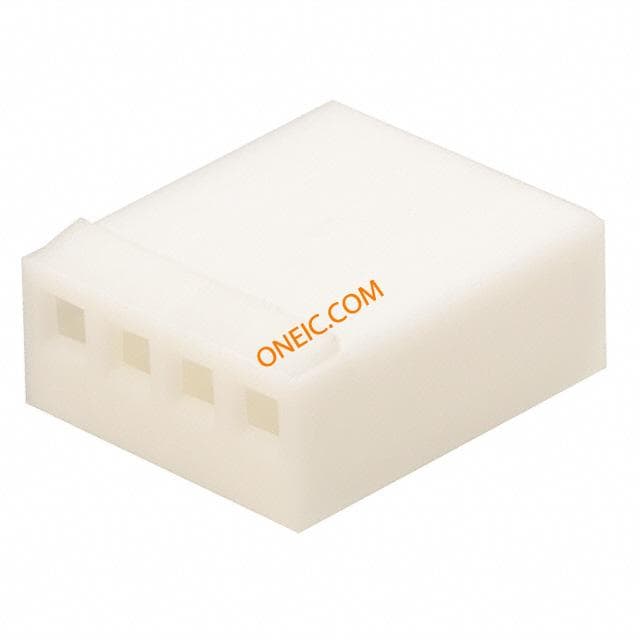

0022012047
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .100 W/RAMP
0010112043
Molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Bag CONN HOUSING 4POS .100 HI PRESS

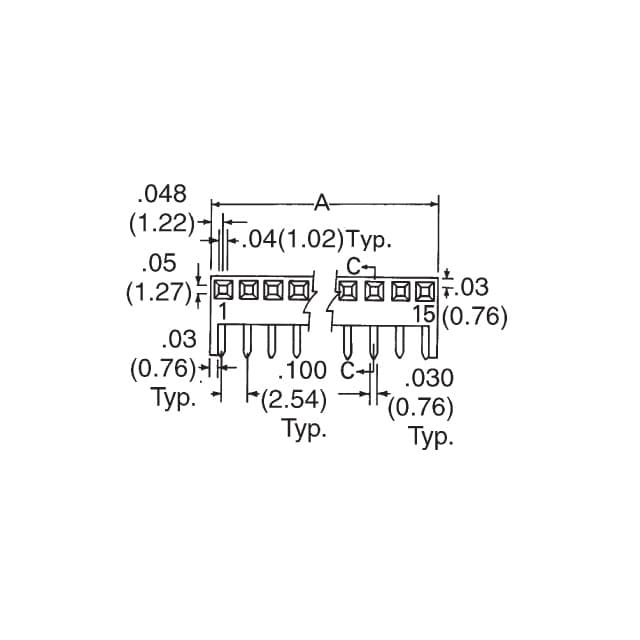

0022152046
molex
Conn Socket Strip RCP 4 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 4POS .100 R/A PCB
0022162040
molex
Conn Socket Strip RCP 4 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 4POS .100 R/A PCB
76650-0007
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V 22-30 WIRE SIZE KIT CONN KK SERIES ASSORTED Headers & Wire Housings SERVICE KIT 82PCS COMPONENT KITS, WIRE TO BOARD KIT 10,2,4,6,8POS 2.5A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2.54MM PITCH 250V ... Kit Description:Vertical and Right Angle Header and Receptacle, with Extraction and Universal Crimp ToolKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:184 KK Series .100 CenterSpacing Kit (Terminal Housings & Headers) 30-22 Awg
22-01-2041
molex
Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,4w Headers & Wire Housings 4 CKT TERM HOUSING Connector Housing .100 TERMINAL HOUSING; W/O LOCK RAMP; 4 CIRCUITS Molex KK 254 系列 1 行 2.54mm 节距 4 路 直 母 电缆安装 压接连接器外壳
0448120004
Molex
Conn Socket Strip RCP 4 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 4POS .100" TIN PCB
0022013047
Molex
Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 4POS .100 W/RAMP/RIB Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag
22-02-2045
Molex Connector Corporation
CONN RECEPT 4POS .100 VERT PCB Headers & Wire Housings PCB RECPT 4P W/HOOKS TOP ENTRY
22-17-3042
Molex Connector Corporation
CONN RECEPT 4POS .100 VERT PCB Headers & Wire Housings 2.54MM BOARD CONN Bottom Entry 4 CKT Conn Socket Strip RCP 4 POS 2.54mm Solder ST Thru-Hole Tray
22-14-2044
Molex Connector Corporation
CONN RECEPT 4POS .100 VERT PCB Molex 2.54mm 4 Way 1 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings PCB RECEPTACLE 4P BOTTOM ENTRY Conn Socket Strip RCP 4 POS 2.54mm Solder ST Thru-Hole Tray
22-18-2041
Molex Connector Corporation
CONN RECEPT 4POS .100 VERT PCB Headers & Wire Housings 2.54MM BOARD CONN Top Entry 4 CKT Conn Socket Strip RCP 4 POS 2.54mm Solder ST Thru-Hole Tray
14-60-0041
Molex Connector Corporation
CONN IDC 4POS .100 TIN 24AWG Headers & Wire Housings SL IDT Opt A Female 24AWG Tin 4Ckt Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount Tube
14-56-2041
Molex Connector Corporation
CONN IDC 4POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt A 15 SAu 4Ckt Conn IDC Connector F 4 POS 2.54mm IDT ST Cable Mount Tube

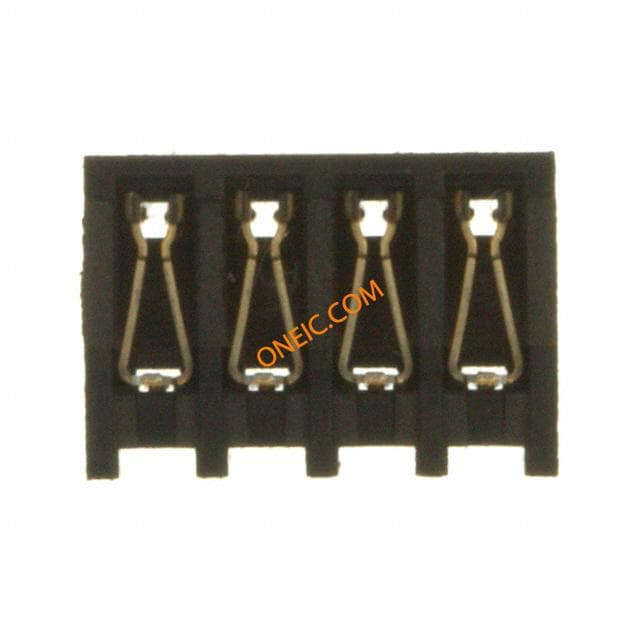

44812-0022
