0015910080
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST SMD Tube CONN HEADER 8POS .100" VERT 15AU |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 15 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 250VDC|250VAC | Voltage - Supply (Min) | 250VDC/250VAC |
Mechanical
| Color | Black | Depth | 5.08 mm |
| Pitch | 2.54 mm | Height | 9.66 mm |
| Packaging | Tube | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Surface Mount |
| Connector Type | Header, Unshrouded, Breakaway | Contact Finish | Gold Over Nickel |
| Mounting Style | Surface Mount | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 10.16 mm | Number of Contacts | 8 |
| Number of Positions | 8 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
PDF Document
Similar Parts

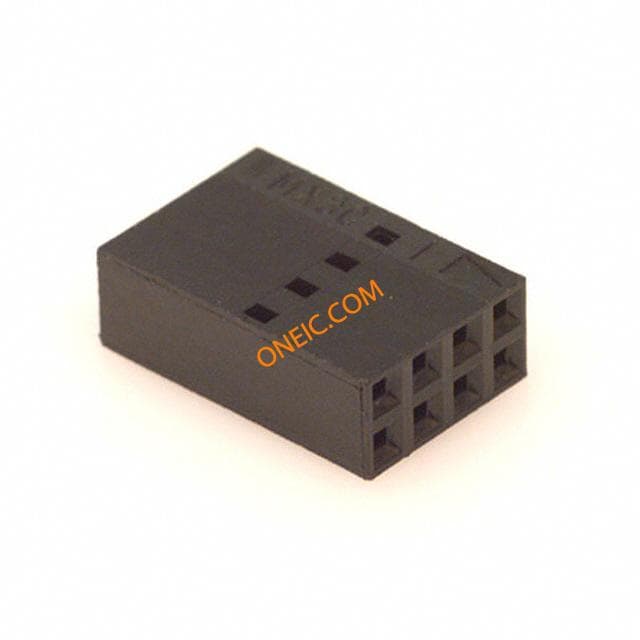

22-55-2081
