0015247241
| Manufacturer | |
| Description | Conn Wire to Board RCP 24 POS 4.2mm Solder ST Thru-Hole Tray Conn Power RCP 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER 24POS 4.2MM VERT TIN |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Connector Power |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 6/Contact A |
| Voltage - Input (Min) | 600V | Voltage - Supply (Min) | 600V |
Mechanical
| Color | Natural | Depth | 9.6 mm |
| Pitch | 4.2 mm | Height | 11.34 mm |
| Diameter | Not Required mm | Packaging | Tray |
| Row Spacing | 0.165" (4.20mm) | Termination | Solder |
| Contact Type | Female Socket | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass Alloy |
| Housing Material | Nylon 6/6 | Length - Overall | 55.6 mm |
| Number of Contacts | 24 | Number of Positions | 24 |
| Contact Finish Thickness | 100µin (2.54µm) | ||
Product Info
| Type | Wire to Board | Gender | RCP |
| Features | Board Lock | Number of Ports | 1 |
| Industry Aliases | 15-24-7241, 15247241 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | Operating Temperature - Junction | 105C |
Documents & Media
Similar Parts
0436930002
molex
Conn Wire to Board HDR 24 POS 4.2mm Solder ST Thru-Hole Bulk VERT BMI MAKE 1ST/BREAK
0438790032
Molex
Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER 24POS 4.2MM DUAL TIN
0015246242
Molex
Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER VERT 24POS T/H
15-06-0245
Molex Connector Corporation
CONN PLUG 24POS W/PANEL MNT EARS Headers & Wire Housings PLUG DUAL ROW 24POS w/panel mount ears Conn Housing PL 24 POS 4.2mm Crimp ST Bag CONNECTOR, HOUSING, PLUG, 24POS

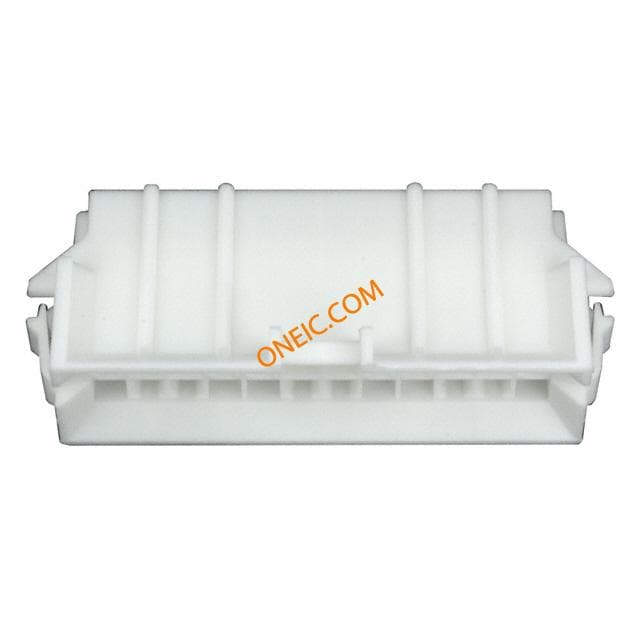

15-06-0246
Molex Connector Corporation
CONN PLUG 24POS W/PANEL MNT EARS 24w d/r blind mate p/mount plug + ears Headers & Wire Housings PLUG DUAL W/EARS 24 panel mount 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, White, UL 94V-0, 24 Circuits Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 24 路 直 公 压接连接器外壳
15-24-6240
Molex Connector Corporation
CONN HEADER 24POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 24P Conn Power HDR 24 POS 4.2mm Solder RA Thru-Hole 24 Terminal 1 Port Tray

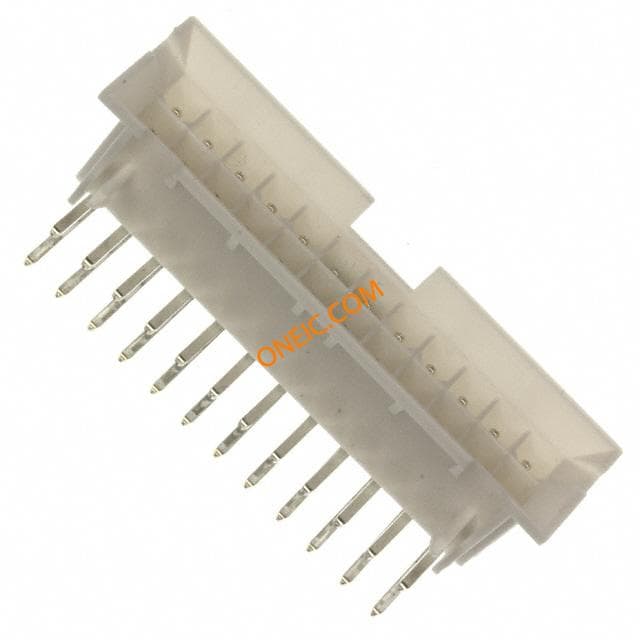

15-24-9244
