0015246243
| Manufacturer | |
| Description | Conn Wire to Board HDR 24 POS 4.2mm Solder RA Thru-Hole Tray CONN HEADER DL 24POS R/A TIN |
| Category |
Business
| Standard Package | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 13/Contact A | Voltage - Input (Min) | 600V |
| Voltage - Supply (Min) | 600V | ||
Mechanical
| Color | Natural | Depth | 20.7 mm |
| Pitch | 0.165" (4.20mm) | Height | 15 mm |
| Packaging | Tray | Row Spacing | 0.165" (4.20mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 57 mm | Number of Contacts | 24 |
| Number of Positions | 24 | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Features | Board Lock | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0039012245
molex
Conn Housing RCP 24 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 24POS DUAL Conn Housing F 24 POS 4.2mm Crimp ST Cable Mount Bag
0445160012
Molex, LLC
. 0445160012 - 24 Position Rectangular Housing Connector Receptacle Black 0.165" (4.20mm) from Molex. from now!
15-24-7243
Molex Connector Corporation
CONN HEADER 24POS 4.2MM STR GOLD Headers & Wire Housings 24CKT VERT RECEPT Conn Power RCP 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray

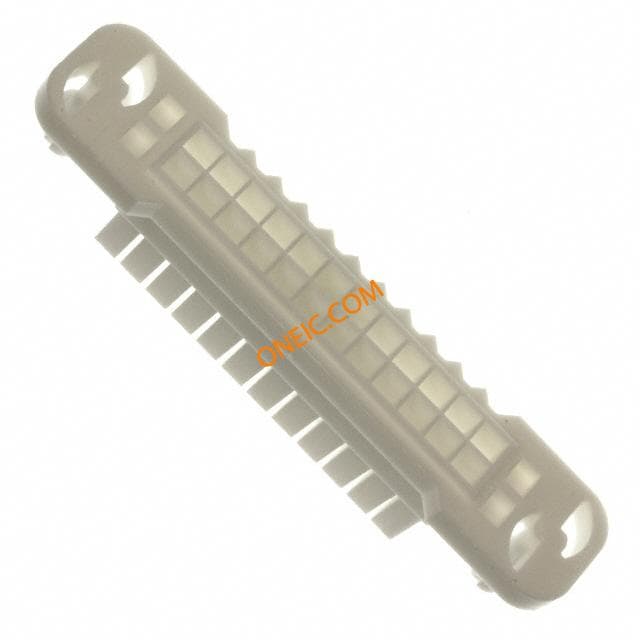

15-06-0241
