0015246101
| Manufacturer | |
| Description | Conn Wire to Board HDR 10 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Tray CONN HEADER DL 10POS VERT TIN |
| Category |
Business
| Lead Time | 43 Days | Subcategory | Connector Power |
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 13/Contact | Voltage - Input (Min) | 600VAC |
Mechanical
| Color | Natural | Depth | 15 |
| Pitch | 4.2 mm | Height | 14.1 |
| Packaging | Tray | Row Spacing | 0.165" (4.20mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon 6/6 |
| Length - Overall | 30 | Number of Contacts | 10 |
| Number of Positions | 10 | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Wire to Board | Gender | HDR |
| Features | Board Lock | Number of Ports | 1 |
| Industry Aliases | 15-24-6101, 15246101 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 105 | ||
Documents & Media
Similar Parts
0424741041
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag MINIFIT JR BMI PMRCPT DLRW V-0
0039012100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS DUAL

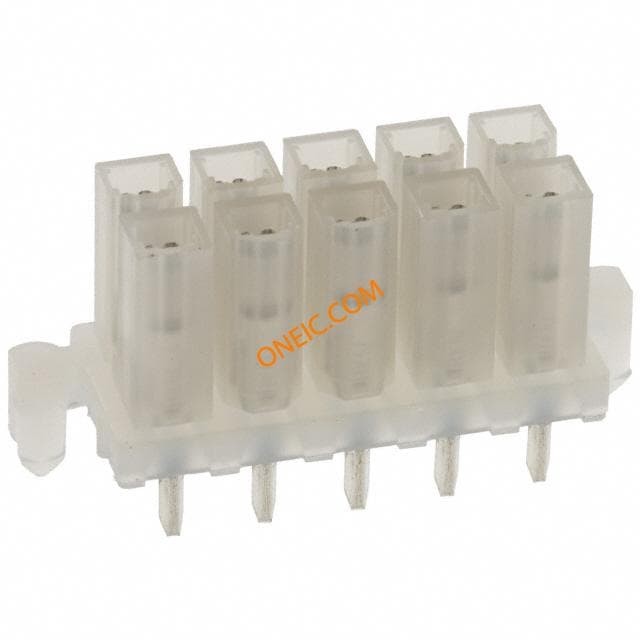

15-24-7100
