0014567052
| Manufacturer | |
| Description | Conn IDC Connector F 5 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 5POS 2.54MM 22AWG TIN |
| Category |
Business
| Standard Package | 1,260 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 15 mohm | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 250VDC|250VAC | Voltage - Supply (Min) | 250VDC/250VAC |
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 0.100" (2.54mm) | Height | 6.58 mm |
| Packaging | Tube | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 22 AWG | Termination | IDT |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Cable Mount | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Fastening Type | Latch Lock |
| Mounting Style | Cable | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 12.67 mm | Cable Termination | IDC |
| Number of Contacts | 5 | Number of Positions | 5 |
| Contact Finish Thickness | 150µin (3.81µm) | ||
Product Info
| Type | IDC Connector | Gender | F |
| Features | Closed End | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0623003100
molex
Connector Accessories Discrete Wire Terminator HAWK Semi-Automatic Discrete Wire Terminator For SL SL HAWK DISCRETE WIRE CE
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0011200949
molex
Connector Accessories IDT Semi automatic Bench Top Terminator IDT - Semi-automatic - Bench-Top Terminator BENCH-TOP TERMINATOR SEMI-AUTO
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0701070074
Molex
Conn Housing F 5 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT C 5POS

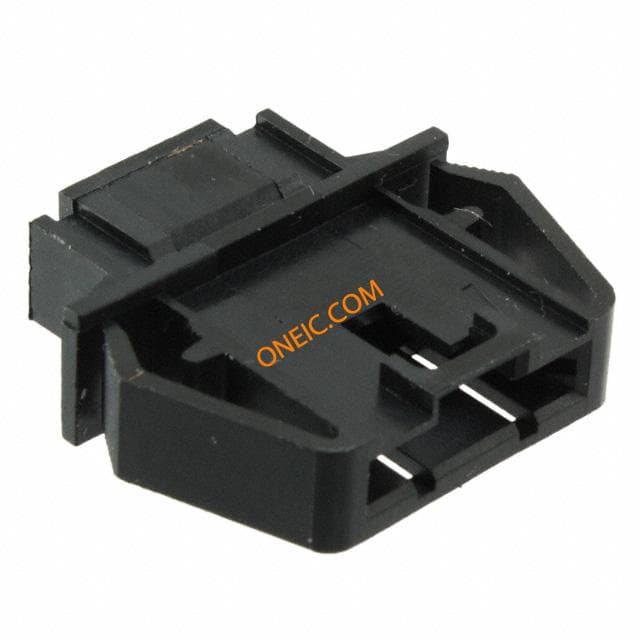

0050650205
