0008701039
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Reel CONN FEMALE 22-28AWG 2.5MM TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel |
| Category |
Business
| Lead Time | 23 Days | Other Names | WM18889CT |
| Subcategory | Connector Contact | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 3 A |
| Voltage - Supply (Min) | 250VDC/250VAC | Connector - Voltage Input | Crimp |
Mechanical
| Depth | 2.4 mm | Pitch | Not Required mm |
| Height | 2.2 mm | Packaging | Reel |
| Wire Gauge | 22-28 AWG | Shield Type | No |
| Termination | Crimp | Contact Type | Signal |
| Housing Color | Not Required | Mounting Type | Cable Mount |
| Pin or Socket | Socket | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Pre-Tin | Mounting Style | Cable |
| Contact Material | Phosphor Bronze | Housing Material | Not Required |
| Length - Overall | 7 mm | Number of Contacts | Not Required |
| Contact Termination | Crimp | Contact Finish Thickness | 35µin (0.90µm) |
Product Info
| Type | Contact | Gender | SKT |
| Series | SPOX™ 5263 | Industry Aliases | 08-70-1039, 08701039, 8701039 |
| For Use With/Related Products | 0008701040 | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0050375033
molex
Conn Housing RCP 3 POS 2.5mm Crimp ST Bag CONN HOUSING 3POS 2.5MM SHROUD
0050375043
molex
Conn Housing RCP 4 POS 2.5mm Crimp ST Bag CONN HOUSING 4POS 2.5MM SHROUD
0050375023
molex
Conn Housing RCP 2 POS 2.5mm Crimp ST Bag Conn Housing F 2 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 2.5MM SHROUD
0638115200
molex
Connector Accessories Hand Crimp Tool Hand Crimp Tool For Spox Crimp Terminals TOOL HAND CRIMP 22-28AWG Tool: for crimping; Spox terminals; 28÷22AWG; Series: SPOX
0050375053
molex
Conn Housing RCP 5 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 5POS 2.5MM SHROUD

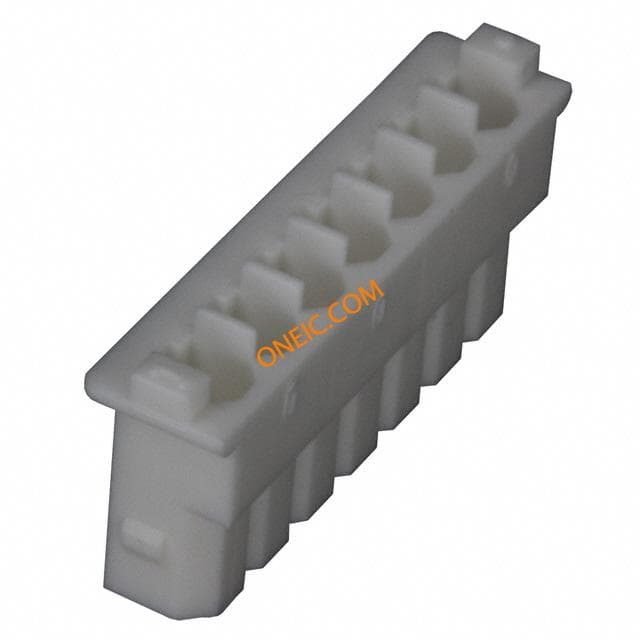

0050375073
molex
Conn Housing RCP 7 POS 2.5mm Crimp ST Bag CONN HOUSING 7POS 2.5MM SHROUD
50-37-5063
molex
Conn Housing RCP 6 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 6POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,6w Headers & Wire Housings SPOX CRIMP HSG 6P Conn Housing F 6 POS 2.5mm Crimp ST Cable Mount Bag HOUSING, CRIMP, RECEPTACLE, 2.5MM, 6WAY 2.5MMLOWPROFILEHOUSING526406 Molex SPOX 系列 2.5mm 节距 6 路 直 母 电缆安装 压接连接器外壳
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX

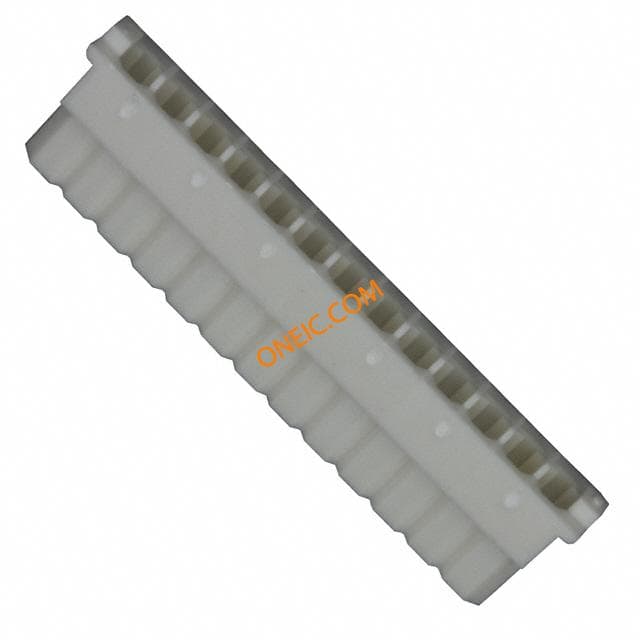

0050375133
Molex
Conn Housing RCP 13 POS 2.5mm Crimp ST Bag CONN HOUSING 13POS 2.5MM SHROUD
0456090012
Molex
Conn Housing RCP 12 POS 2.5mm Crimp ST Cable Mount Bag SPOX BMI RECPT HOUSING 12CKTS
0639105000
Molex
T2 Terminator For 2.50mm Pitch Male Crimp Terminal T2 TERMINATOR ASSEMBLY

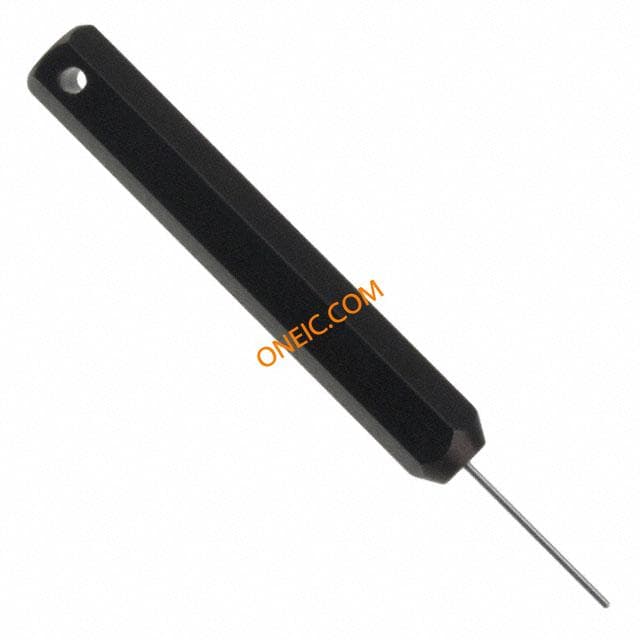

0638131400
Molex
Manual Extraction Tool EXTRACTOR TOOL FOR 33467/33468
50-37-5083
Molex Connector Corporation
CONN HOUSING 8POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,8w Headers & Wire Housings 2.50 SPOX HSG 8P friction lock Conn Housing F 8 POS 2.5mm Crimp ST Cable Mount Bag WIRE-BOARD CONN, RECEPTACLE, 8POS, 2.5MM WIRE TO BOARD CONN, RECPT, 8POS, 2.5MM 2.5MMLOWPROFILEHOUSING526408 Molex SPOX 系列 2.5mm 节距 8 路 直 母 电缆安装 压接连接器外壳

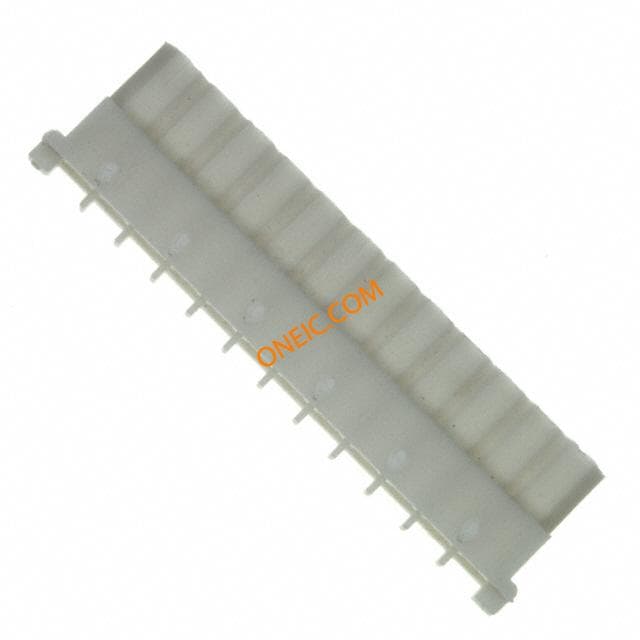

50-37-5123
Molex Connector Corporation
CONN HOUSING 12POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,12w Headers & Wire Housings .098 CRIMP HSG 12P 2.50mm Pitch SPOX™ Wire-to-Board Crimp Housing, Friction Lock, 12 Circuits Conn Housing RCP 12 POS 2.5mm Crimp ST Cable Mount Bag Molex SPOX 系列 2.5mm 节距 12 路 直 母 电缆安装 压接连接器外壳
50-37-5093
Molex Connector Corporation
CONN HOUSING 9POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,9w Headers & Wire Housings 2.50 SPOX HSG 9P friction lock 2.50mm Pitch SPOX™ Wire-to-Board Crimp Housing, Friction Lock, 9 Circuits Molex SPOX 系列 2.5mm 节距 9 路 直 母 电缆安装 压接连接器外壳
50-37-5143
Molex Connector Corporation
CONN HOUSING 14POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,14w Headers & Wire Housings .098 CRIMP HSG 14P 2.50mm Pitch SPOX™ Wire-to-Board Crimp Housing, Friction Lock, 14 Circuits Molex SPOX 系列 2.5mm 节距 14 路 直 母 电缆安装 压接连接器外壳
50-37-5103
Molex Connector Corporation
CONN HOUSING 10POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,10w Headers & Wire Housings .098 10P HOUSING Conn Housing RCP 10 POS 2.5mm Crimp ST Bag .098 Pitch SPOX Wire-to-Board Crimp Housing, Friction Lock, 10 Circuits Molex SPOX 系列 2.5mm 节距 10 路 直 母 压接连接器外壳
50-37-5153
Molex Connector Corporation
CONN HOUSING 15POS 2.5MM SHROUD Crimp Housing 2.5mm SPOX, F/Lock,15w Headers & Wire Housings 2.5MM HSG 15P FRICTION LOCK 2.50mm Pitch SPOX™ Wire-to-Board Crimp Housing, Friction Lock, 15 Circuits Molex SPOX 系列 2.5mm 节距 15 路 直 母 电缆安装 压接连接器外壳
0639123100
Molex Inc
T2 TERMINATOR ASSEMBLY
0639023100
Molex Inc
FINE ADJUST APPLICATOR
