0008500113
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel |
| Category |
Business
| Lead Time | 20 Days | Other Names | WM1114CT |
| Subcategory | Connector Contact | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 mohm | Current Rating (Max) | 4 A |
| Voltage - Supply (Min) | 250V | ||
Mechanical
| Depth | 2.1 mm | Pitch | Not Required mm |
| Height | 3.68 mm | Packaging | Reel |
| Wire Gauge | 22-30 AWG | Shield Type | No |
| Termination | Crimp | Contact Type | Signal |
| Housing Color | Not Required | Mounting Type | Cable Mount |
| Pin or Socket | Non-Gendered | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Tin | Mounting Style | Cable |
| Contact Material | Brass | Housing Material | Not Required |
| Length - Overall | 9.7 mm | Number of Contacts | Not Required |
| Contact Termination | Crimp | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Contact | Gender | SKT |
| Industry Aliases | 08-50-0113, 08500113, 8500113 | For Use With/Related Products | 0008500114 |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0022012047
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .100 W/RAMP
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG

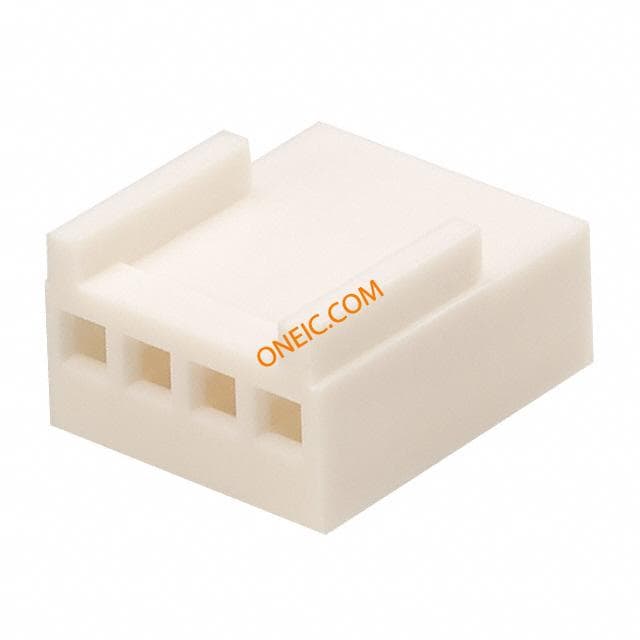

0022011042
molex
Conn Housing F 4 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 4POS 2.5MM

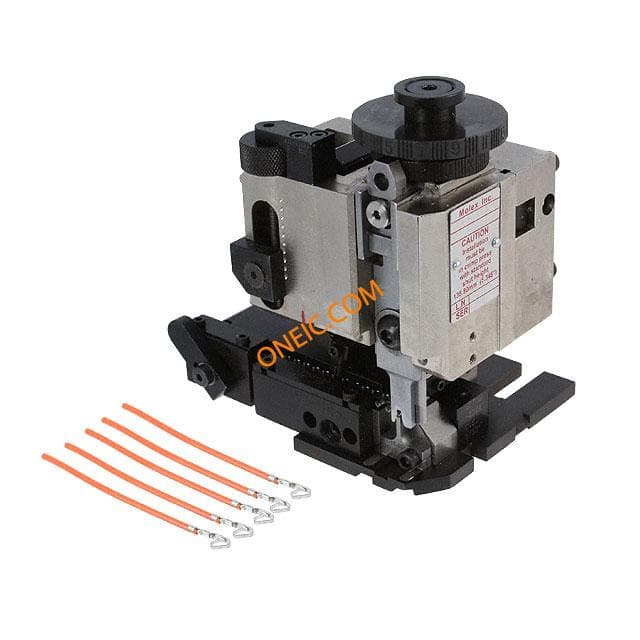

0638882000
molex
MINI MAC APPLICATOR Mini Mac Applicator, Use With Large Wire Insulation Diameter MINI MAC APPLICATOR LARGE WIRE
0022013067
molex
Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 6POS .100 W/RAMP/RIB Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Bag
0022013057
molex
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Bag Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUS 5POS .100 W/RAMP/RIB
0011402265
molex
Connector Accessories Crimp Terminator Die Set Terminator Die With Crimp Function T8304DX TERMINATOR ASSEMBLY
0022011022
molex
Conn Housing F 2 POS 2.5mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 2.5MM

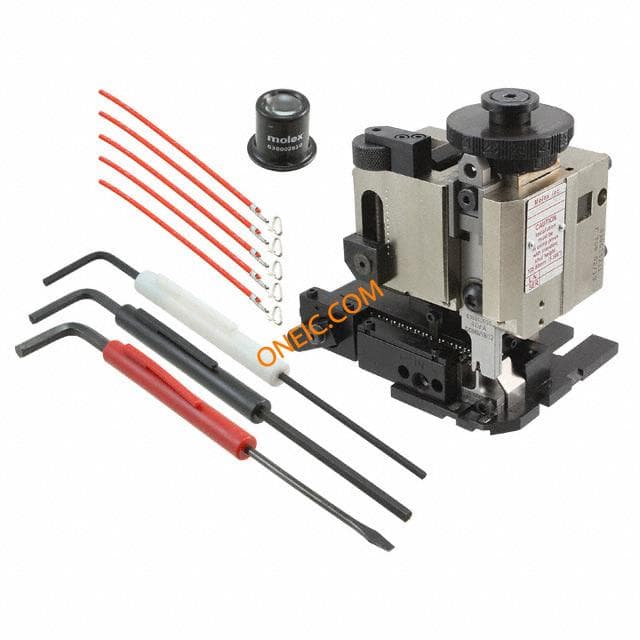

0638882100
molex
Connector Accessories Mini Mac Applicator Tool Mini-Mac Applicator, Use with Small Wire Insulation Diameter MINI MAC APPLICATOR

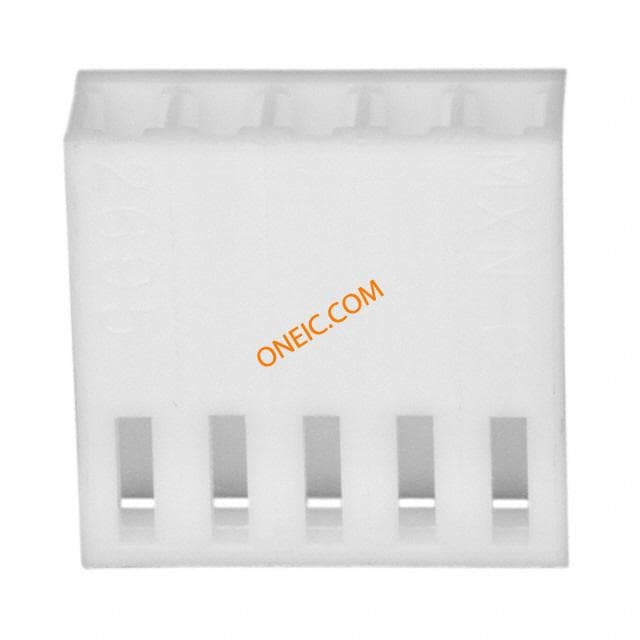

22-01-2051
