0003092121
| Manufacturer | |
| Description | Conn Housing PL 12 POS 5.03mm Crimp ST Bag CONN PLUG 12POS .093 |
| Category |
Business
| Lead Time | 22 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | 5 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 9.5/Contact | Voltage - Input (Min) | 250V |
Mechanical
| Color | Natural | Depth | 24.9 |
| Pitch | 0.198" (5.03mm) | Height | 18.8 |
| Packaging | Bag | Row Spacing | 0.198" (5.03mm) |
| Contact Type | Male or Female | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Detent Lock | Number of Rows | 3 |
| Housing Material | Nylon 6/6 | Number of Contacts | 12 |
| Contact Termination | Crimp | Number of Positions | 12 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Industry Aliases | 03-09-2121, 03092121, 3092121 |
Environmental
| Operating Temperature | -40°C ~ 105°C | ||
Documents & Media
Similar Parts
0002091119
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0002092116
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN
0002092118
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Bag
0002092101
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-20AWG TIN Connetor
0002092103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 14-20AWG TIN
0002091104
Molex, LLC
. 0002091104 - Socket Contact Tin 14-20 AWG Crimp Power from Molex. from now!
02-09-5132
molex
CONN CONT F 1 POS CRMP ST CBL MNT CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors 2.36MM PIN & SOCKET Female Contact SKT Crimp ST Cable Mount Bag
02-09-6145
Molex
Pin & Socket Connectors TERMINAL .093 MALE CONN TERM MALE 24-30AWG GOLD
02-09-1139
Molex
Pin & Socket Connectors SOCKET 22-24AWG BULK CONN TERM FEMALE 22-24AWG TIN Contact SKT Crimp ST Cable Mount Bag
02-09-5142
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG GOLD Crimp 2.36mm,,fem,18-22 AWG,Aubag Pin & Socket Connectors SOCKET 18-22AWG BULK .093 TERMINAL FEMALE 18-22 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
0003091126
Molex, LLC
. 0003091126 - 12 Position Rectangular Housing Connector Receptacle Natural 0.198" (5.03mm) from Molex. from now!

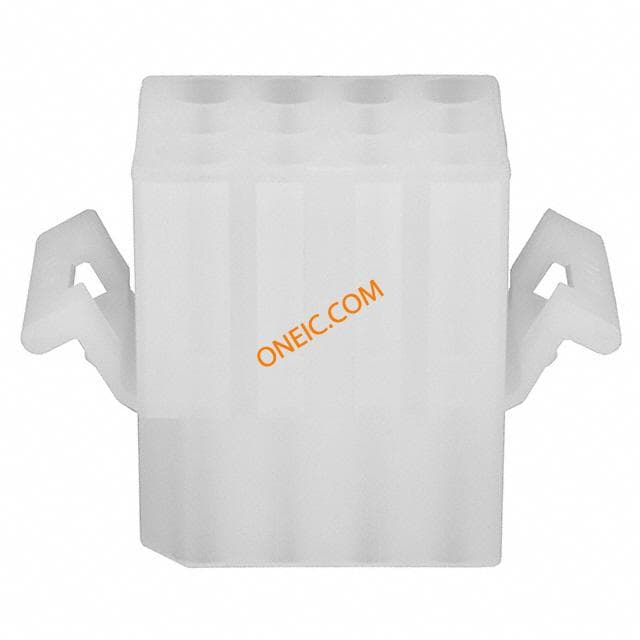

03-09-1121
Molex Connector Corporation
CONN RECEPT 12POS .093 PNL MOUNT Pin & Socket Connectors 12 CKT RECPTACLE Conn Housing RCP 12 POS 5.03mm Crimp ST Bag RECEPTACLE, 0.093", 12WAY TERMINAL HOUSE; STD; RECEPT W/MNT EAR ONLY; 12 CIRCUITS Molex STANDARD .093" 系列 3 行 5.03mm 节距 12 路 直 母 面板安装 压接连接器外壳
03-09-1125
Molex Connector Corporation
CONN RECEPT 12POS .093 PANEL MNT Pin & Socket Connectors 12C RECEPTACLE PLUG & SOCKET HOUSING, RECEPTACLE, NYLON
0003091122
Molex Inc
CONN RCPT FREE HNG 12CKT .093
02-09-6106
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Crimp 2.36mm,male,14-20 AWG,Au,bag Pin & Socket Connectors TERMINAL MALE 14-20 Conn Contact M 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 20-14AWG, CRIMP .093 CONN TERM MALE 14-20AWG GOLD 093MALETERMLOOSEBRS15AU14-20 .093CONNTERMMALE14-20AWGGOLD Molex STANDARD .093" 系列 公 压接接线端子, 压接, 镀金镀镍触点
02-09-6110
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Pin & Socket Connectors PIN 14-20AWG BULK 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, ... 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, 14-20 AWG, Bag 093 Male Term Loose Brs 50Au 14-20
02-09-5106
Molex Connector Corporation
CONN TERM FEMALE 14-20AWG GOLD Crimp term 2.36mm,,fem,14-20 AWG,Au, bag Pin & Socket Connectors SOCKET 14-20AWG BULK Contact SKT Crimp ST Cable Mount Bag 093 Female Brass Term Lse 15Au 14-20 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点

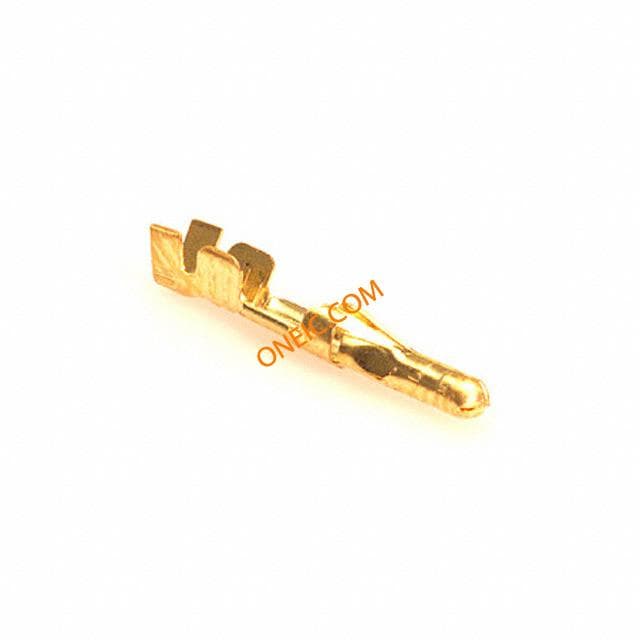

02-09-6123
