点击放大查看
0003091094
| Manufacturer | |
| Description | Conn Housing RCP 9 POS 5.03mm Crimp ST Bag CONN RECEPTACLE 9POS .093 |
| Category |
Business
| Lead Time | 22 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | 2,000 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Current Rating (Max) | 11/Contact A | ||
Mechanical
| Color | Natural | Depth | 26.2 mm |
| Pitch | 0.198" (5.03mm) | Height | 16 mm |
| Packaging | Bag | Orientation | Straight |
| Row Spacing | 0.198" (5.03mm) | Contact Type | Male or Female |
| Housing Color | Natural | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Number of Rows | 3 | Housing Material | Nylon 66 |
| Color - Connectors | Natural | Number of Contacts | 9 |
| Contact Termination | Crimp | Number of Positions | 9 |
| Material - Insulation | Nylon 66 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Industry Aliases | 03-09-1094, 03091094, 3091094 |
| Other Specifications | 3 | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0002091119
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0002092116
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN
0002092118
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Bag
0002092101
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-20AWG TIN Connetor
0003092092
molex
Conn Housing PL 9 POS 5.03mm Crimp ST Bag CONN PLUG 9POS .093
0002092103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 14-20AWG TIN
0010181091
molex
Conn Shrouded Header HDR 9 POS 5.03mm Solder ST Thru-Hole Bag TERM BLK SKT 9POS 2.36MM
02-09-5132
molex
CONN CONT F 1 POS CRMP ST CBL MNT CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors 2.36MM PIN & SOCKET Female Contact SKT Crimp ST Cable Mount Bag
03-09-2091
molex
Conn Housing PL 9 POS 5.03mm Crimp ST Bag CONN PLUG 9POS .093 PANEL MOUNT Molex 5.03mm 9 Way 3 Row Straight Male Housing Receptacle Pin & Socket Connectors 9 CIRCUIT PLUG 2.36mm Diameter Standard .093" Pin and Socket Plug Housings, 9 Circuits, 3 Rows CONNECTOR HOUSING, PLUG, 9 WAY, NYLON TERMINAL HOUSE; STD; PLUG W/MNT EAR & DTENT LCK; 9 CIRCUITS Molex STANDARD .093" 系列 9路 (3行) 5.03mm节距 直 自由悬挂 外壳
02-09-6145
Molex
Pin & Socket Connectors TERMINAL .093 MALE CONN TERM MALE 24-30AWG GOLD
02-09-1139
Molex
Pin & Socket Connectors SOCKET 22-24AWG BULK CONN TERM FEMALE 22-24AWG TIN Contact SKT Crimp ST Cable Mount Bag
0002098108
Molex
Contact PIN Crimp ST Cable Mount Reel TERM MALE PIN .093 14-18AWG
02-09-5142
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG GOLD Crimp 2.36mm,,fem,18-22 AWG,Aubag Pin & Socket Connectors SOCKET 18-22AWG BULK .093 TERMINAL FEMALE 18-22 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
02-09-6106
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Crimp 2.36mm,male,14-20 AWG,Au,bag Pin & Socket Connectors TERMINAL MALE 14-20 Conn Contact M 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 20-14AWG, CRIMP .093 CONN TERM MALE 14-20AWG GOLD 093MALETERMLOOSEBRS15AU14-20 .093CONNTERMMALE14-20AWGGOLD Molex STANDARD .093" 系列 公 压接接线端子, 压接, 镀金镀镍触点
02-09-6110
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Pin & Socket Connectors PIN 14-20AWG BULK 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, ... 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, 14-20 AWG, Bag 093 Male Term Loose Brs 50Au 14-20
02-09-5106
Molex Connector Corporation
CONN TERM FEMALE 14-20AWG GOLD Crimp term 2.36mm,,fem,14-20 AWG,Au, bag Pin & Socket Connectors SOCKET 14-20AWG BULK Contact SKT Crimp ST Cable Mount Bag 093 Female Brass Term Lse 15Au 14-20 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
02-09-6123
Molex Connector Corporation
CONN TERM MALE 18-22AWG GOLD Pin & Socket Connectors PIN 18-22AWG BULK Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 22-18AWG, CRIMP

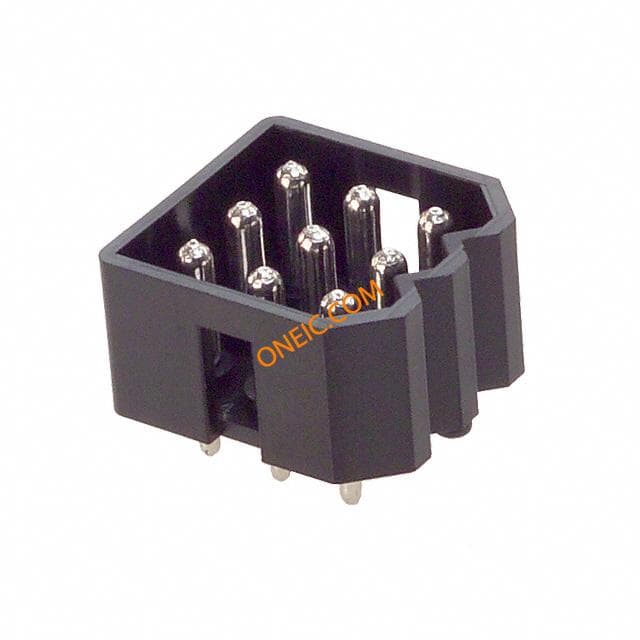

10-18-1090
