0532530270
| Manufacturer | |

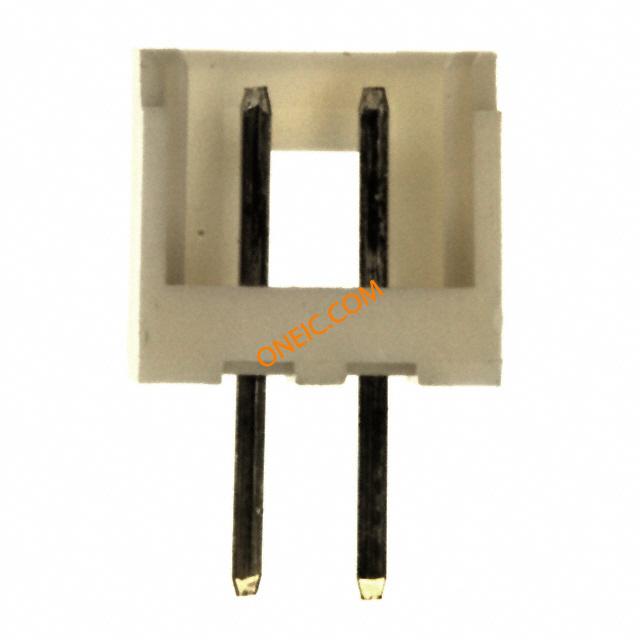

| Description | . 0532530270 - Connector Header Through Hole 2 position 0.079" (2.00mm) from Molex. from now! |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 2/Contact A |
| Voltage - Supply (Min) | 125VDC/125VAC | ||
Mechanical
| Depth | 3.65 mm | Pitch | 2 mm |
| Height | 5.5 mm | Packaging | Tray |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Nylon 6/6 |
| Length - Overall | 6 mm | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Length - Mating | 0.130" (3.30mm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40C to 105C | ||
