0438790058
| Manufacturer | |
| Description | . 0438790058 - Connector Header Through Hole 10 position 0.165" (4.20mm) from Molex. from now! |
| Category |
Business
| Standard Package | 400 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 8/Contact |
Mechanical
| Color | Black | Depth | 15 |
| Pitch | 0.165" (4.20mm) | Height | 14.9 |
| Length | 31.41 | End Style | Solder |
| Packaging | Tray | Orientation | Straight |
| Row Spacing | 0.165" (4.20mm) | Termination | Press-Fit |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Fastening Type | Latch Holder | Number of Rows | 2 |
| Contact Material | Brass | Number of Contacts | 10 |
| Number of Positions | 10 | Material - Insulation | Thermoplastic |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Power | Gender | HDR |
| Number of Ports | 1 | Other Specifications | 4.2 |
| Assembly Configuration | Through Hole | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 105 | ||
Similar Parts
0424741041
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag MINIFIT JR BMI PMRCPT DLRW V-0
0039012105
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS DUAL Conn Housing F 10 POS 4.2mm Crimp ST Cable Mount Bag
0039012100
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS DUAL
15-06-0101
molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Bag CONN RECEPT 10POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-0,10w Headers & Wire Housings RECPT DUAL ROW 10P w/panel mount ears Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 10 路 直 母 压接连接器外壳

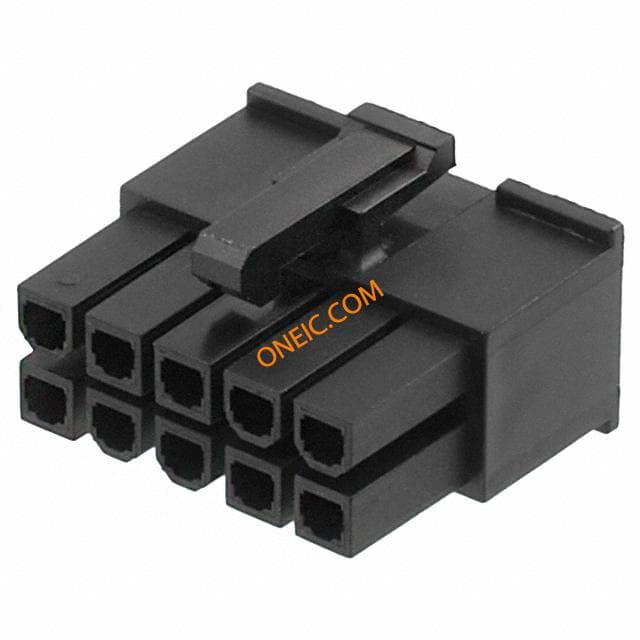

0050361671
Molex
Conn Housing RCP 10 POS 4.2mm Crimp ST Cable Mount Bulk CONN MINI FIT JR RCPT 10POS DL
15-06-0100
Molex Connector Corporation
CONN RECEPT 10POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,10w Headers & Wire Housings RECPT DUAL ROW 10POS w/panel mount ears 4.20mm Pitch Mini-Fit® BMI Receptacle Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 10 Circuits MINIFIT BMI RCPT/PANMNT V-2 MINIFITBMIRCPT/PANMNTV-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 10 路 直 母 面板安装 压接连接器外壳
