90327-0316
| Manufacturer | |
| Description | CONN RECEPT IDT 16POS 1.27MM TIN 16 way IDT housing,1.27mm pitch low prof Headers & Wire Housings 16CKT IDT RECEPT Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 16WAY Female connector 16P, 90327-0316, Molex Molex PICOFLEX 系列 2行 16路 1.27mm节距 直角 电缆安装 母 IDC 连接器 |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0903270316 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366930 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - Picoflex 90327 Series | Voltage Rating | 250 V |
| Contact Resistance | :10mohm | Voltage - Breakdown | :750V |
| Current Rating (Max) | 1.2A | Contact Rating (Current) | :1.2A |
Mechanical
| Color | White | Pitch | 0.100" (2.54mm) |
| Width | :19.05mm | Weight | 0.002 |
| Material | :Polyester | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | PET |
| Cable Termination | IDC | Termination Style | IDC |
| Color - Connectors | :White | Number of Contacts | 16 |
| Contact Termination | :IDC / IDT | Number of Positions | 16 |
| Contact Finish Thickness | 78.7µin (2.00µm) | Wire Gauge or Range - AWG | :28AWG |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Gender | Female | Series | 90327 |
| Features | Feed Through | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
0903250016
molex
Conn Ribbon Cable Connector HDR 16 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 16POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 16; tinned; 1.2A
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS
76650-0123
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX VERT 1.27MM ASSORTE Headers & Wire Housings PICOFLEX CONN KIT VERT Kit Description:SMT Vertical Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT SMT VERT HEADER & IDT RECEPT

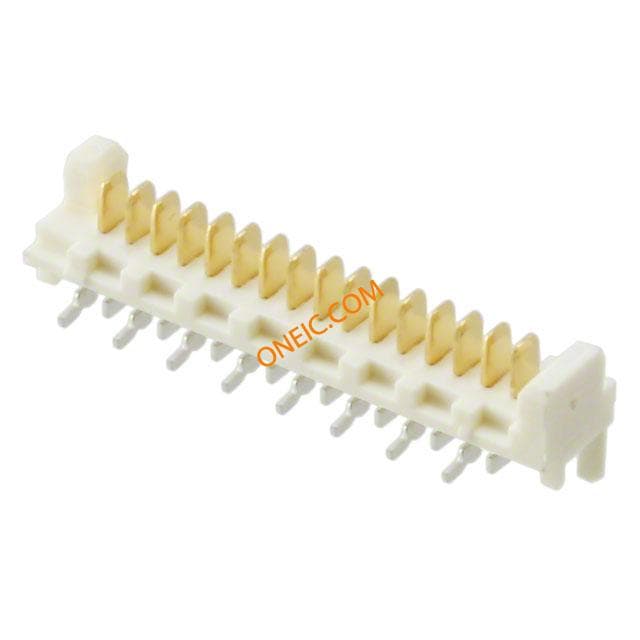

90814-3816
molex
Conn Ribbon Cable Connector HDR 16 POS 2.54mm Solder ST SMD Tube CONN HEADER 16PS 1.27MM SMD GOLD Header 1.27mm,SMT, vert, low pro, 16w Headers & Wire Housings 1.27MM 16P VERT HDR LO-PRO SMT,AU HEADER, 1.27MM, 16WAY Molex PICOFLEX 系列 16路 1.27mm节距 公 IDC 连接器 , 表面安装
69008-1090
molex
Connector Accessories Picoflex Connector IDT Hand Tool Crimpers HAND CRIMP 04-26P PICOFLEX Hand tool-Picoflex PF-50 IDT receptacles HAND TOOL, IDT Handtool, 69008-1090, Molex Molex HANDTOOL 系列 IDT 压接工具 , 适用于28 → 26 AWG 线规格
76650-0122
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX RA 1.27MM ASSORTED Headers & Wire Housings PICOFLEX CONN KIT R/A Kit Description:Right Angle Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT RT ANGLE HEADER & IDT RECEPT

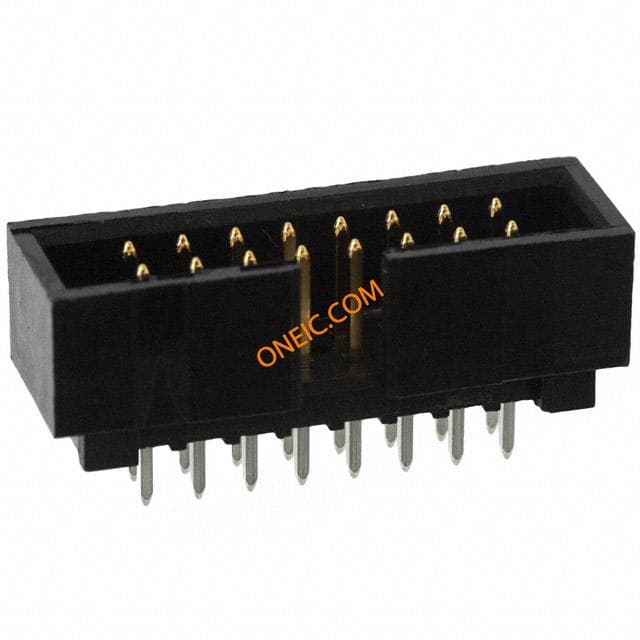

0702461601
Molex
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 16POS .100 VERT GOLD

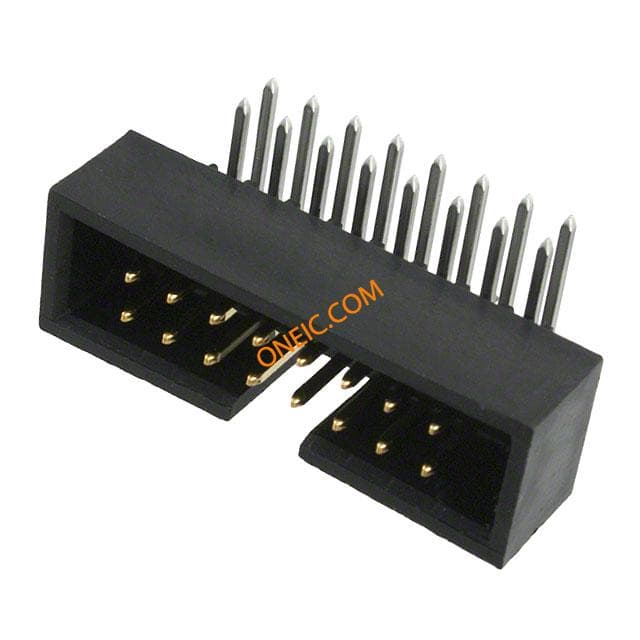

0702471651
Molex
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 16POS .100 R/A 15AU
90325-3016
molex
Conn Ribbon Cable Connector HDR 16 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 16POS 1.27MM GOLD Header 1.27mm, RA, low pro,16w,pcb peg Headers & Wire Housings 1.27mm PF Hdr LoPro Polz Blk .76Au 16Ckt Molex PICOFLEX 系列 16路 1.27mm节距 公 IDC 连接器 , 通孔
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

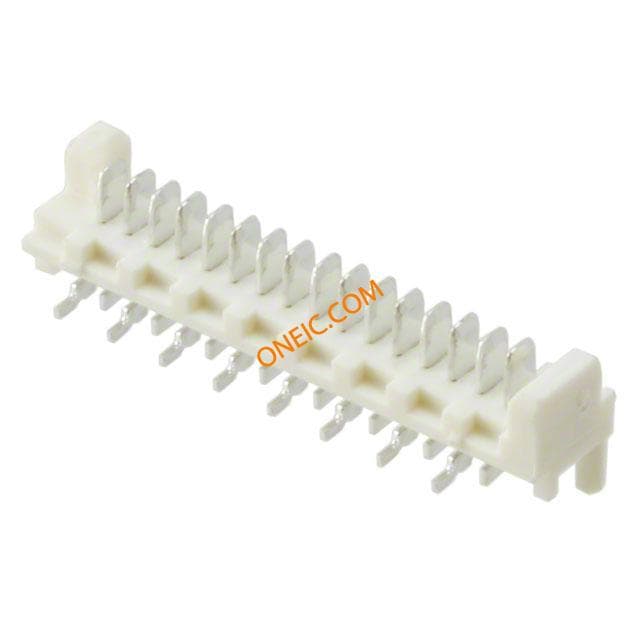

0908140816
Molex
Conn Ribbon Cable Connector HDR 16 POS 2.54mm Solder ST SMD Tube CONN HEADER 16POS 1.27MM SMD TIN

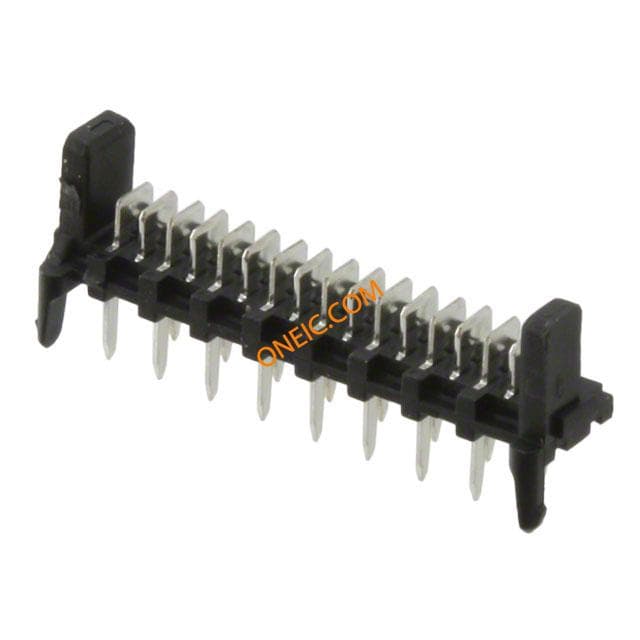

90325-9016
Molex Connector Corporation
CONN HEADER 16POS 1.27MM TIN T/H Header 1.27mm, vert, low pro,16w Headers & Wire Housings PICOFLEX 16P HDR SN R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 16 POS 1.27mm Solder ST Thru-Hole Tube HEADER, 1.27MM, 16WAY Molex PICOFLEX 系列 16路 1.27mm节距 公 IDC 连接器 , 通孔

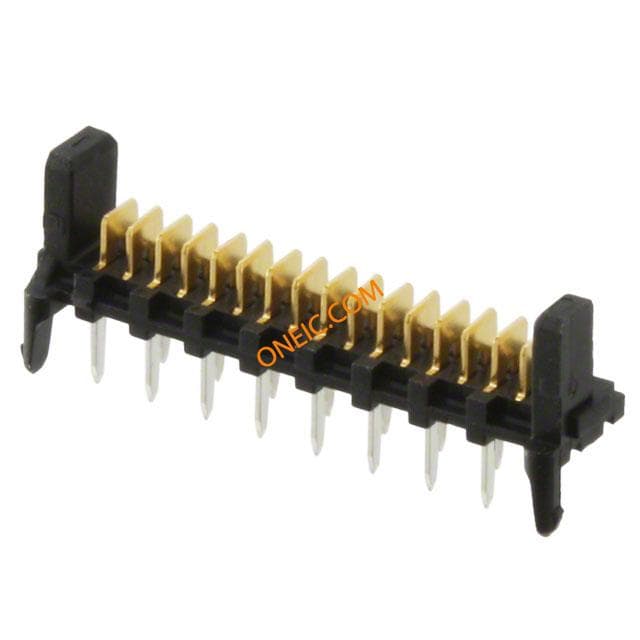

90325-7016
