90143-0026
| Manufacturer | |
| Description | CONN HOUSNG 26POS .100" DL CRIMP Headers & Wire Housings 2.54MM CGRIDIII HSG 26P DR W/O POL BTTN 2.54mm Pitch C-Grid III™ Modular Crimp Housing, Dual Row, 26 Circuits |
| Category |
Business
| Tradename | C-GRID | Part # Aliases | 0901430026 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Mounting Style | Wire |
| Number of Rows | 2 | Housing Material | Polyphenylene Oxide (PPO) |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 26 | Contact Termination | Crimp |
| Number of Positions | 26 | ||
Product Info
| Note | Contacts Not Provided | Series | 90143 |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点

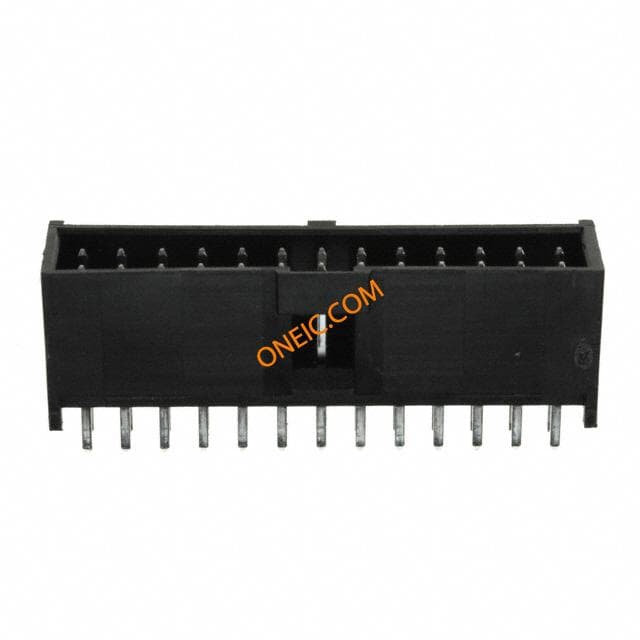

90130-1126
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 26POS .100" STR TIN Molex 90130 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 26P V DR SHRD TIN Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔

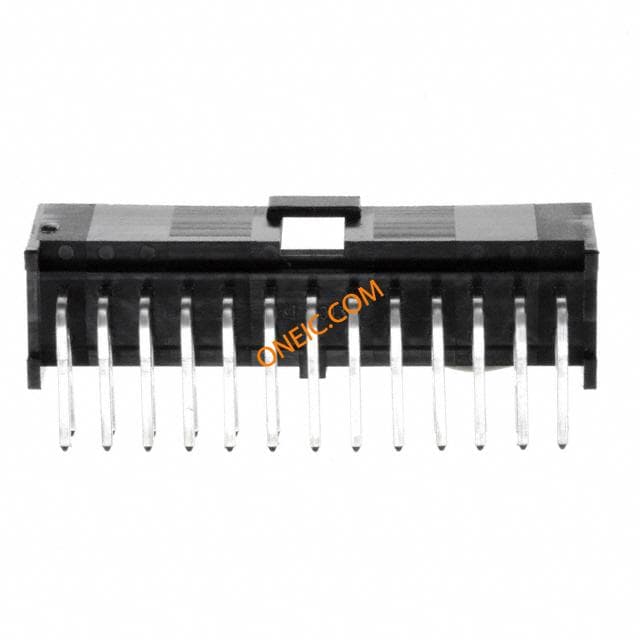

90130-3126
molex
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 26POS .100" R/A TIN Molex 90130 Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 26P R/A DR SHRD TIN C-GRID SHRD HDR DR RA TN-A 26/26 Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

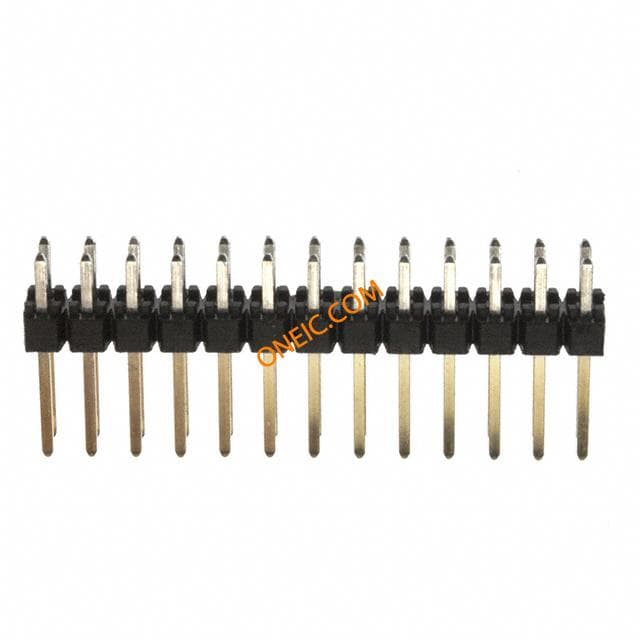

90131-0773
Molex Connector Corporation
CONN HEADER 26POS .100" STR GOLD Molex 90131 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings C-GRID III 26 CKT HE Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray CONNECTOR, HEADER, THT, 2.54MM, 26WAY Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔

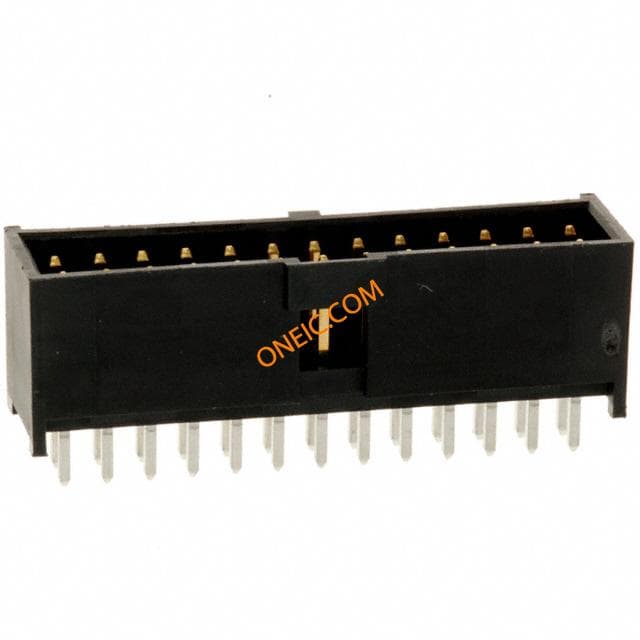

90130-1226
Molex Connector Corporation
CONN HEADER 26POS .100" STR GOLD Molex 90130 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 26P V DR SHRD AU-E Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray HEADER, VERTICAL, 2ROW, 26WAY PCB header 2 x 13P, 90130-1226, Molex Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔

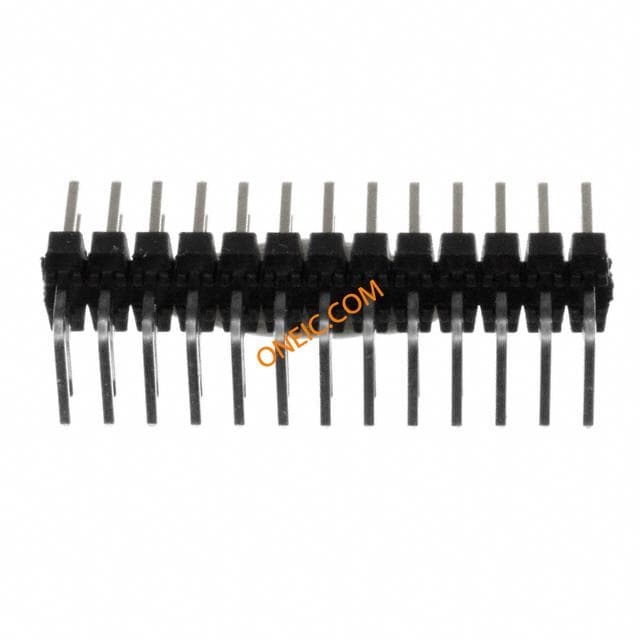

90122-0773
Molex Connector Corporation
CONN HEADER 26POS .100" R/A GOLD Headers & Wire Housings 2.54MM CGRIDIII HDR 26P R/A DR SEL AU Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Tray
90131-0133
Molex Connector Corporation
CONN HEADER 26POS .100" STR TIN Molex 90131 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 26P VERT DR TIN Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tray Pin header 2 x 13P, 90131-0133, Molex Molex C-GRID III 系列 2.54mm节距 26路 (2排) 直 引脚管座, 焊接端接, 3A , 通孔

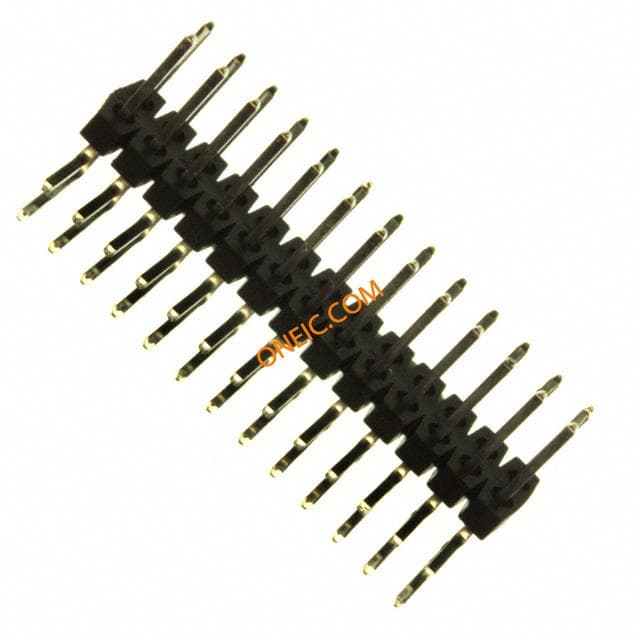

90122-0133
