90142-0044
| Manufacturer | |
| Description | CONN HOUSING 44POS .100" DUAL Crimp Housing 2.54mm C-Grid III,2row,44w 2.54mm Pitch C-Grid III™ Crimp Housing Dual Row, 44 Circuits Molex C-GRID III 系列 2 行 2.54mm 节距 44 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 0.100" (2.54mm) | Width | 7.72mm |
| Length | 55.88mm | Packaging | Bulk |
| Orientation | 直 | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Number of Rows | 2 | Housing Material | PPO |
| Number of Contacts | 44 | Contact Termination | Crimp |
| Number of Positions | 44 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 90142 | CAD Drawing | 3D CAD Model |
| Base Product Number | 90142 | For Use With/Related Products | C-Grid III Connector |
Documents & Media
Similar Parts
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

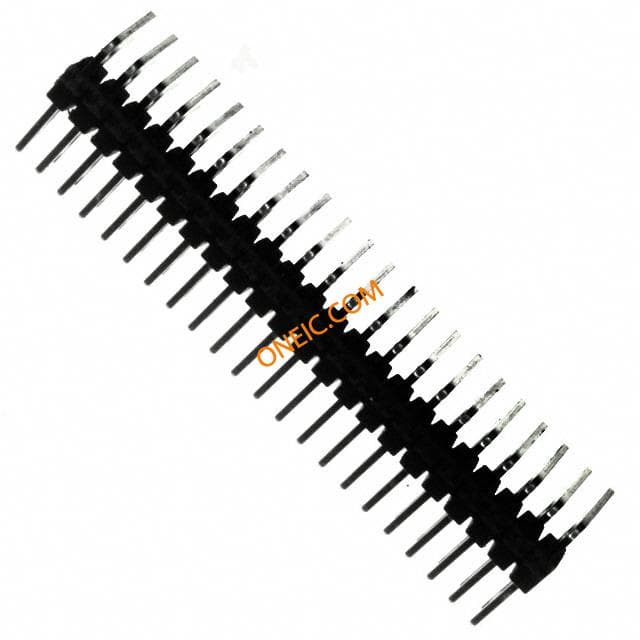

90122-0142
