点击放大查看
71661-7030
| Manufacturer | |
| Description | CONN PLUG VERTICAL 30POS .050 Board to Board & Mezzanine Connectors 1.27MM PLG 30P VT .110 TAIL Conn EBBI PL 30 POS 2.54mm Solder ST Thru-Hole 30 Terminal 1 Port Tray |
| Category |
Business
| Tradename | EBBI 50D | Part # Aliases | 0716617030 |
| Product Category | Board to Board & Mezzanine Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1120 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 30 V | Current Rating (Max) | 1 A |
Mechanical
| Pitch | 0.050" (1.27mm) | Packaging | Tray |
| Mounting Type | Through Hole | Connector Type | Plug, Center Strip Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Style | Through Hole | Height Above Board | 0.362" (9.20mm) |
| Number of Contacts | 30 | Number of Positions | 30 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Series | 71661 | Features | Board Guide |
| Product Type | Plugs | ||
Documents & Media
Similar Parts

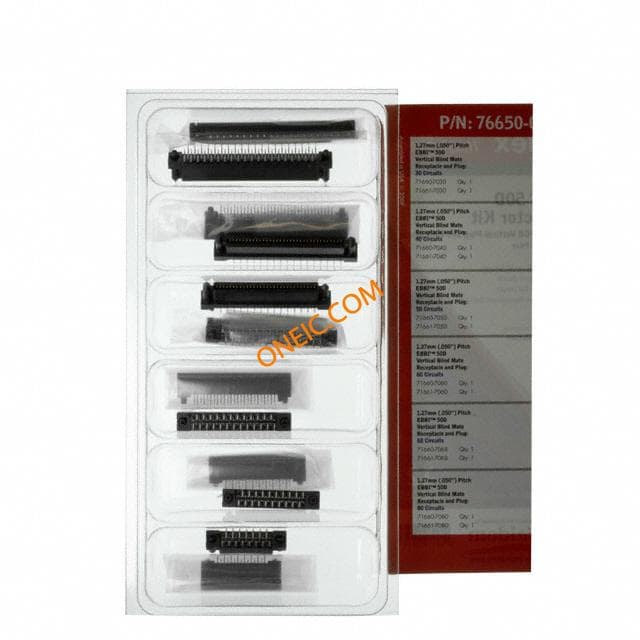

76650-0173
molex
BMI PCB Vertical Plug And Receptacle Kit 2.79mm Tail Length KIT CONN EBBI 50D BLIND MATE BTB Board to Board & Mezzanine Connectors EBBI50D KIT BLINDMATE BTB Kit Description:BMI PCB Vertical Plug and Receptacle 2.79mm Tail lengthKit Category:Board to BoardSolution:Blind-MatePackaging:Clamshell: 9" by 4"Num. Pieces:12 EBBI 50D CONNECTOR KIT BMI PCB VERT PLUG & RECEPT 2.79MM TAIL LENGTH
0015921430
Molex
Conn EBBI RCP 30 POS 2.54mm Solder ST Thru-Hole 30 Terminal 1 Port Tray CONN RECEPT VERTICAL 30POS .050
0716603530
Molex
Conn EBBI RCP 30 POS 2.54mm IDT RA Cable Mount 30 Terminal 1 Port Tray EBBI 50D VT RCPT IDT 30CKT

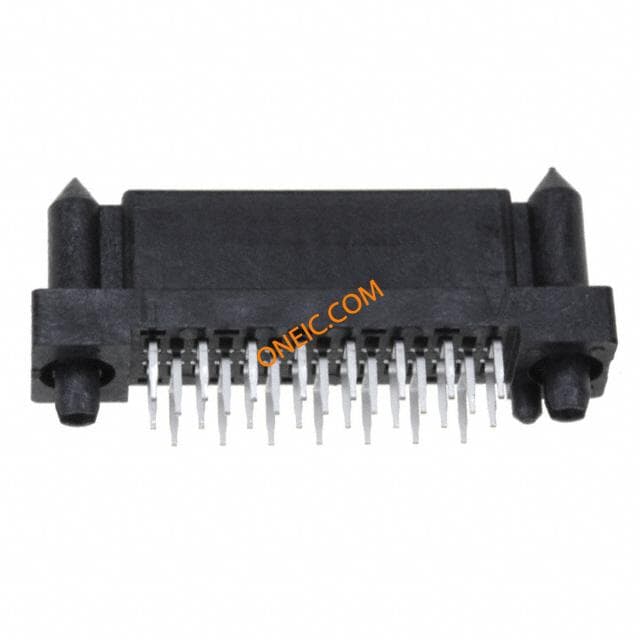

71660-7030
