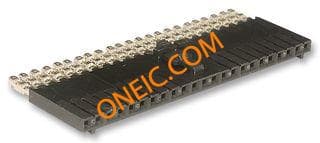

70553-0022

Manufacturer	Molex, LLC
Description	CONN HEADER 23POS .100 R/A GOLD Headers & Wire Housings 2.54MM HDR 23 CKT Right Angle 2.54mm Pitch SL™ Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket, Shrouded, 23 Circuits, 0.38µm Gold (Au) Selective Plating, ... 2.54mm Pitch SL™ Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket, Shrouded, 23 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Tradename	SL	Part # Aliases	0705530022
Product Category	Headers & Wire Housings	Standard Package	1
Factory Pack Quantity	320

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 V	Switch Function	Latched
Current Rating (Max)	3 A

Mechanical

Color	Black	Pitch	0.100" (2.54mm)
Packaging	Tube	Termination	Solder
Contact Type	Male Pin	Mounting Type	Through Hole, Right Angle
Connector Type	Header, Shrouded	Contact Finish	Gold
Number of Rows	1	Contact Material	Phosphor Bronze
Housing Material	Polyester	Termination Style	Through Hole
1st Contact Gender	Pin (Male)	Number of Contacts	23
Number of Positions	23	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness	15µin (0.38µm)

Product Info

Type	Shrouded	Series	70553
Product Type	Headers	Number of Positions Loaded	All

Documents & Media

PDF Document

Single Row (SL) Prod Spec

PDF Document

0705530022_PCB_HEADERS.pdf
