70543-0113
| Manufacturer | |
| Description | CONN HEADER 9POS .100 VERT 30AU Headers & Wire Housings 2.54MM SR 9P HDR VERT AU SHRD Conn Shrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Tube |
| Category |
Business
| Tradename | SL | Part # Aliases | 0705430113 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 1008 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Termination Style | Through Hole |
| Number of Positions | 9 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded | Series | 70543 |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
Similar Parts

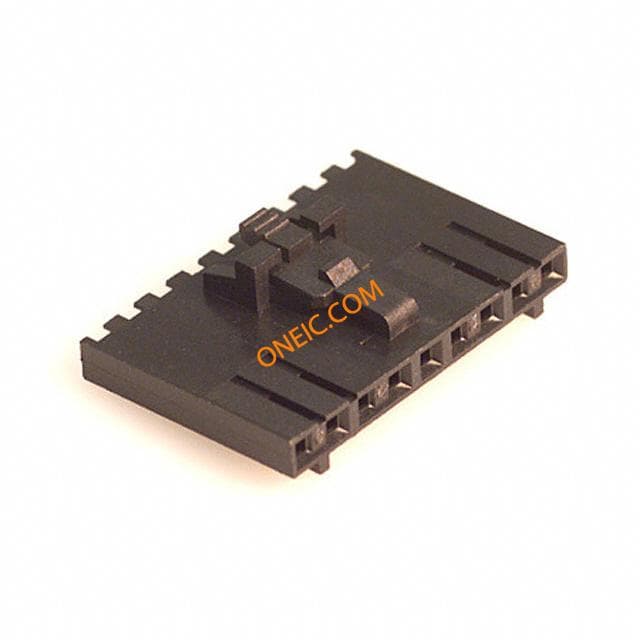

0050579409
