70247-0852
| Manufacturer | |
| Description | CONN HEADER 8POS .100 R/A 30AU Headers & Wire Housings 8CKT R/A SHDR HDR |
| Category |
Business
| Tradename | C-Grid | Part # Aliases | 0702470852 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 144 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Termination Style | Through Hole | Number of Contacts | 8 |
| Number of Positions | 8 | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded | Series | 70247 |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
Similar Parts
0903273360
molex
Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
15-44-4504
Molex
Headers & Wire Housings Obsolete CONN RECEPT 8POS .100 VERT PCB
15-45-1304
Molex
Headers & Wire Housings Obsolete CONN RECEPT 8POS .100 VERT PCB
15-44-3204
Molex
Headers & Wire Housings Obsolete CONN RECEPT 8POS .100 VERT PCB
0903273308
Molex
Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 8POS 1.27MM GOLD
0903270308
Molex
Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 8POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 8; tinned; 1.2A; 250V
0903270362
Molex
Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT

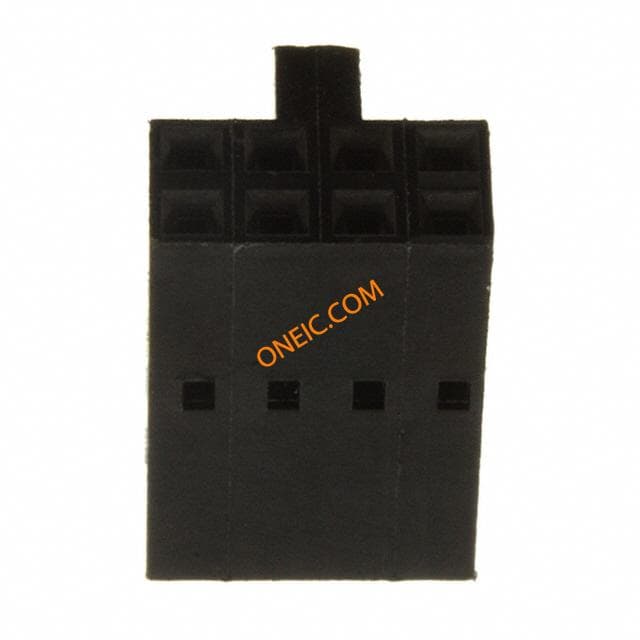

22-55-2082
