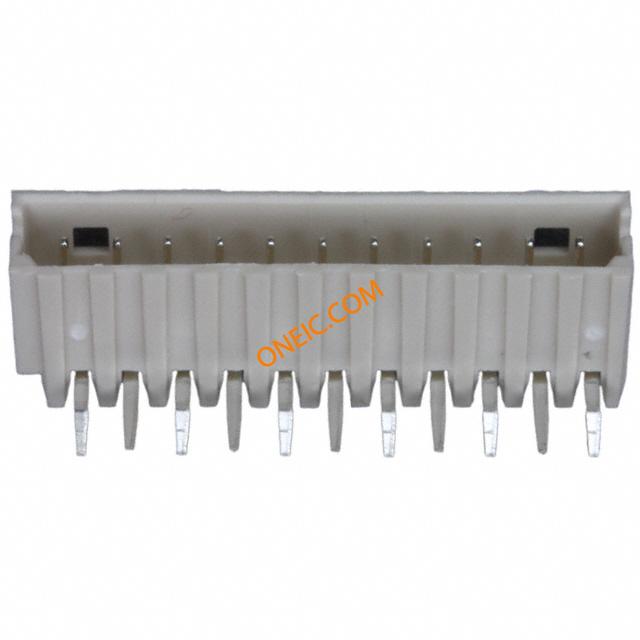

53015-1110
| Manufacturer | |
| Description | CONN HEADER 2MM 11POS RT ANG TIN Headers & Wire Housings HDR W-T-B R/A 11P BLADE PINS Conn Shrouded Header HDR 11 POS 2mm Solder RA Thru-Hole Bag |
| Category |
Business
| Tradename | MicroBlade | Part # Aliases | 0530151110 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 125 V | Current Rating (Max) | 2 A |
Mechanical
| Color | White | Pitch | 0.079" (2.00mm) |
| Packaging | Bulk | Termination | Press-Fit |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Termination Style | Through Hole |
| Number of Contacts | 11 | Number of Positions | 11 |
| Contact Length - Mating | 0.122" (3.10mm) | Contact Finish Thickness | 35µin (0.90µm) |
Product Info
| Type | Shrouded | Series | 53015 |
| Product Type | Headers | Number of Positions Loaded | All |
