51110-2651
| Manufacturer | |
| Description | CONN HOUSING 2MM 26POS POLARIZED Housing 2.00mm Milli-Grid,26w Headers & Wire Housings 26CIR CRIMP HOUSING Conn Housing RCP 26 POS 2mm Crimp ST Cable Mount Bag CRIMP HOUSING, MILLI-GRID, 2MM, 26WAY Crimp housing Pitch2 mm Poles 26 Milli-Grid, 51110-2651, Molex Molex MILLI-GRID 系列 2 行 2mm 节距 26 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | Milli-Grid | Part # Aliases | 0511102651 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | Material Flammability Rating | :94V-0 |
Electrical
| Range deg/s | :MOLEX - Milli-Grid 51110 Series | Current Rating (Max) | 500 mA |
| Connector - Voltage Input | Female | ||
Mechanical
| Color | Black | Depth | 7mm |
| Pitch | 0.079" (2.00mm) | Width | 4.8mm |
| Length | 26.2mm | Weight | 0.00001 |
| Packaging | Bulk | Row Spacing | 0.079" (2.00mm) |
| Termination | :Crimp | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | :- | Fastening Type | Locking Ramp |
| Number of Rows | 2 | Contact Material | :- |
| Housing Material | PET | Color - Connectors | :Black |
| Number of Contacts | 26 | Contact Termination | Crimp |
| Number of Positions | 26 | ||
Product Info
| Note | Contacts Not Provided | Type | Crimp Housing |
| Gender | Female | Series | 51110 |
| Features | Polarizing Key | Polarity | :Center Polarization Key |
| CAD Drawing | 3D CAD Model | Product Type | Wire Housings |
| Application Specifics | Signal, Wire-to-Board | For Use With/Related Products | Milli-Grid Connector |
Environmental
| Operating Temperature | :+105°C | ||
Documents & Media
Similar Parts
0503948100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG CRIMP Contact; female; 24÷30AWG; Milli-Grid; gold plated; 2mm
0503948200
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG 30GOLD

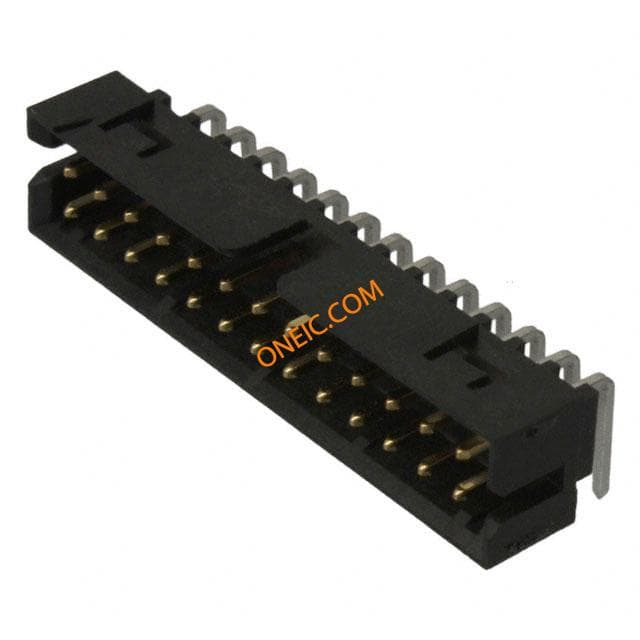

0878332620
molex
Conn Shrouded Header HDR 26 POS 2mm Solder RA Thru-Hole Tube HEADER SHRD RA/SLOT 26CKT

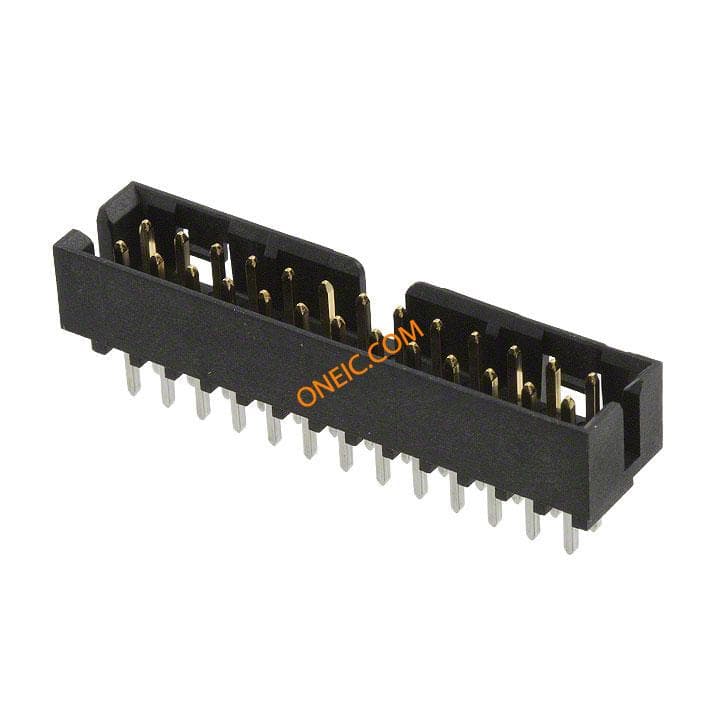

0878312620
molex
Conn Shrouded Header HDR 26 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 26POS 2MM VERT GOLD
0503948052
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD
0503948051
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG GOLD
0878322620
Molex
Conn Shrouded Header HDR 26 POS 2mm Solder ST SMD Tube CONN HEADER 26POS STR 2MM SMD AU
0503948400
Molex
Contact SKT Crimp ST Cable Mount Bag 2MM MGRID CRIMP LOOSE TERM

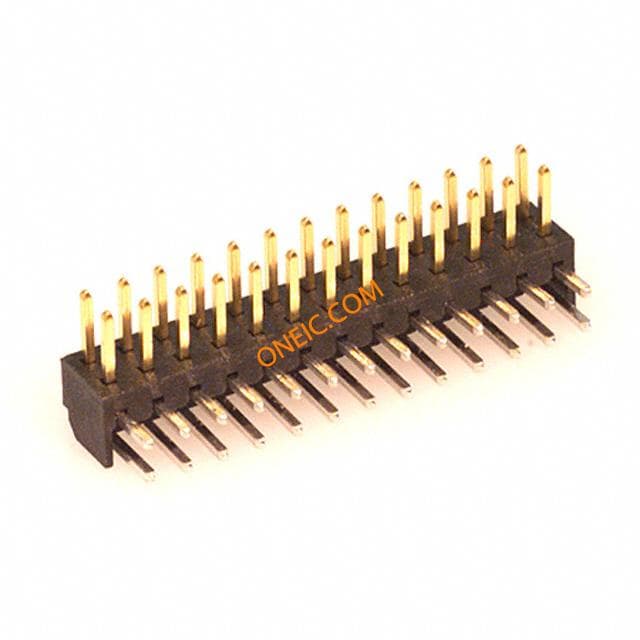

87760-2616
