51004-0500
| Manufacturer | |
| Description | CONN RCPT HOUSING 2MM 5POS SGL Housing,rcp,MicroBlade,2.0mm,LoPro,5way Headers & Wire Housings 2MM W-T-B HSG 5P friction lock Conn Housing RCP 5 POS 2mm Crimp ST Cable Mount Bag HEADER, WIRE TO BOARD FEMALE Conn; Term Blk; PCB; Plug Assy; 5; 2mm; Friction Lock; 34-24 AWG; 0.5-2.0A; 500V Molex MICROBLADE 系列 2mm 节距 5 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | MicroBlade | Part # Aliases | 0510040500 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Not Applicable | Tariff No | 85365005 |
Electrical
| Range deg/s | :MOLEX - MicroBlade 51004 Series | Current Rating (Max) | 2 A |
Mechanical
| Color | Natural | Depth | 5.8mm |
| Pitch | 0.079" (2.00mm) | Length | 12mm |
| Weight | 0.027 | Material | 53014, 53015, 53025 MicroBlade Headers |
| Packaging | Bulk | Termination | :Crimp |
| Contact Type | Female Socket | Lead Spacing | :2mm |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | :- | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | :- | Housing Material | PBT |
| Primary Material | PCB | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
Product Info
| Note | Contacts Not Provided | Type | Pluggable |
| Gender | Female | Series | 51004 |
| Product Type | Receptacles / Sockets - Housings | For Use With/Related Products | MicroBlade Wire-to-Board Connector |
Documents & Media
Similar Parts
0530140510
molex
Conn Shrouded Header HDR 5 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 2MM 5POS TIN
0530150510
molex
Conn Shrouded Header HDR 5 POS 2mm Solder RA Thru-Hole Bag CONN HEADER 2MM 5POS RT ANG TIN
0500118000
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG CRIMP TIN 0500118000

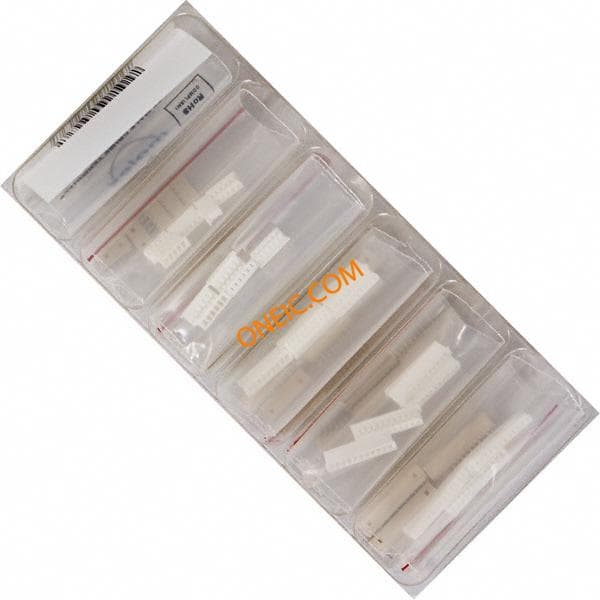

76650-0109
