501645-1620
| Manufacturer | |

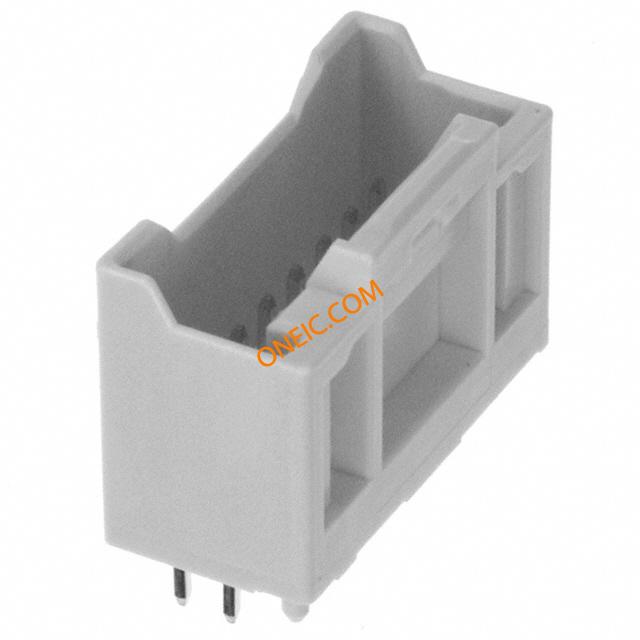

| Description | CONN HEADER 16POS 2MM VERT TIN Headers & Wire Housings IGRID 16P V HDR DUL ROW W/PCB LOC |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | iGrid | Product Category | Headers & Wire Housings |
| Standard Package | 1 | Factory Pack Quantity | 770 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 2 A |
Mechanical
| Color | Natural | Pitch | 0.079" (2.00mm) |
| Packaging | Tray | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Latch Holder |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polyamide (PA) | Termination Style | Through Hole |
| Number of Contacts | 16 | Number of Positions | 16 |
Product Info
| Series | 501645 | Features | Board Guide |
| Product Type | Plugs - Housings | Number of Positions Loaded | All |
