501330-1200
| Manufacturer | |
| Description | CONN RCPT 1MM VERT 12POS 12w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 12Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 12 Circuits HOUSING, 1.0MM, PICO-CLASP, 12WAY Crimp Housing for Pitch1 mm Poles 1 x 12 Pico-Clasp™, 501330-1200, Molex Molex PICO-CLASP 系列 1mm 节距 12 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Pico-Clasp | Product Category | Headers & Wire Housings |
| Standard Package | 1 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Electrical
| Range deg/s | :MOLEX - Pico-Clasp 501330 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | White | Depth | 5.5mm |
| Pitch | 0.039" (1.00mm) | Width | 4.76mm |
| Length | 13.7mm | Weight | 0.05 |
| Packaging | Bulk | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | :- | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | :- | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 501330 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - Housings | For Use With/Related Products | Pico-Clasp Wire-to-Board Connector |
Similar Parts
501331-1207
molex
Conn Shrouded Header HDR 12 POS 1mm Solder ST SMD Embossed T/R Molex 501331 Series 1mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 1.0 WtB 12Ckt StrWaferAssyEmbsTpPk HEADER, 1.0MM, PICO-CLASP, 12WAY Header, straight Pitch1 mm Poles 1 x 12 Pico-Clasp™, 501331-1207, Molex Molex PICO-CLASP 系列 1mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 1A , 表面安装
501334-0100
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 1.0 WtB Crimp Term 28-32 AWG Loose TERMINAL, PICO-CLASP, 28-32AWG CONTACT, FEMALE, 32-28AWG, CRIMP Crimp socket 1 A Female 32...28 AWG, 501334-0100, Molex Molex PICO-CLASP 系列 母 压接触点, 压接或压缩, 镀锡触点

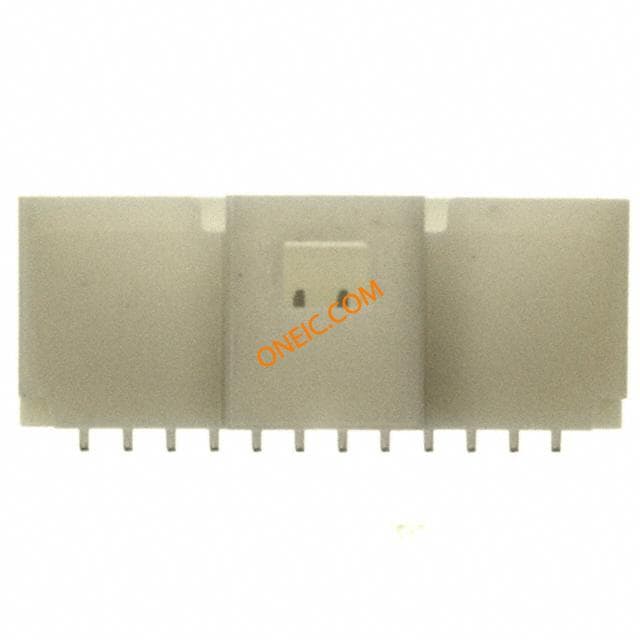

501568-1207
molex
Conn Shrouded Header HDR 12 POS 1mm Solder RA SMD Embossed T/R CONN HEADER 1MM 12POS SMD R/A Molex 501568 Series 1mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.0 WtB 12Ckt R/AWaferAssyEmbsTpPk Molex PICO-CLASP 系列 1mm节距 12路 (2排) 直角 PCB 针座, 焊接端接, 1A , 表面安装

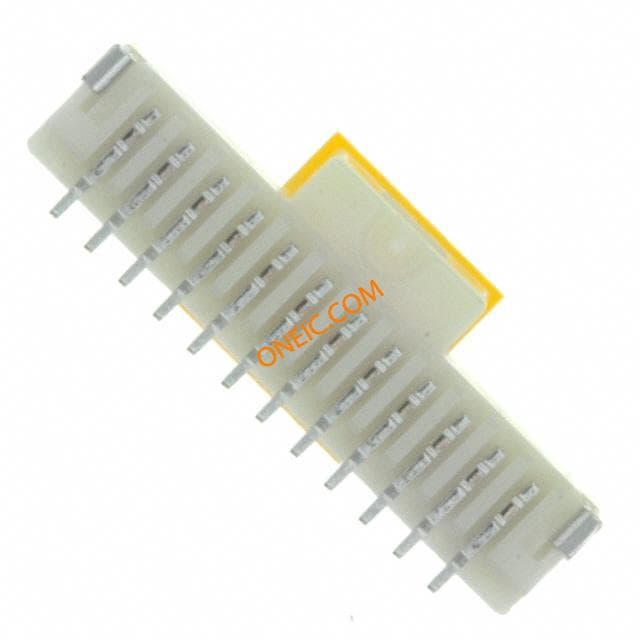

5013311207
Molex
Conn Shrouded Header HDR 12 POS 1mm Solder ST SMD Embossed T/R CONN HEADER 1MM 12POS SMD TIN 1.0WtB1-RowStrWaferAssyEmbsTpPkg12Ckt Socket; wire-board; male; PIN:12; 1mm; SMT; PICO-CLASP; 50V; 1A 12P PICOCLASP 1.00MM STRAIGHT

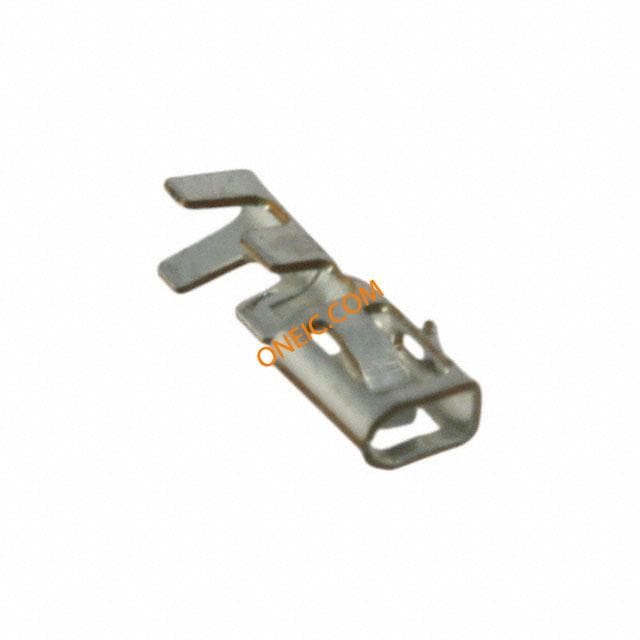

5013340100
