501330-0300
| Manufacturer | |
| Description | CONN RCPT 1MM VERT 3POS 3w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 3Ckt Female Housing Conn Housing F 3 POS 1mm Crimp ST Cable Mount Bag HOUSING, 1.0MM, PICO-CLASP, 3WAY Crimp Housing forPico-Clasp™, 501330-0300, Molex Molex PICO-CLASP 系列 1mm 节距 3 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Pico-Clasp | Product Category | Headers & Wire Housings |
| Standard Package | 1 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :MOLEX - Pico-Clasp 501330 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | White | Depth | 5mm |
| Pitch | 0.039" (1.00mm) | Width | 2.94mm |
| Length | 4.7mm | Weight | 0.005 |
| Packaging | Bulk | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | :- | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | :- | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 501330 | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - Housings | For Use With/Related Products | Pico-Clasp Wire-to-Board Connector |
Documents & Media
Similar Parts

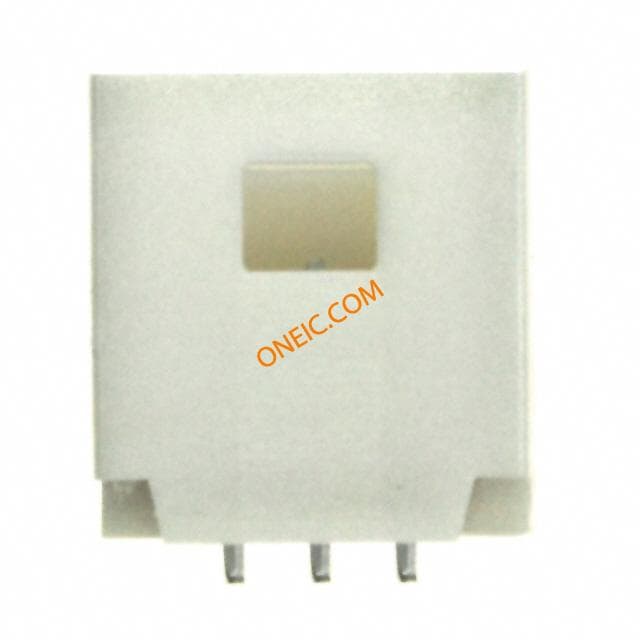

5015680307
molex
Conn Shrouded Header HDR 3 POS 1mm Solder RA SMD Embossed T/R 1.0WTB1-ROWR/AWAFERASSY3CKTEMBSTPPKG CONN HEADER 1MM 3POS SMD R/A 1.0WtB1-RowR/AWaferAssy3CktEmbsTpPkg
501334-0100
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 1.0 WtB Crimp Term 28-32 AWG Loose TERMINAL, PICO-CLASP, 28-32AWG CONTACT, FEMALE, 32-28AWG, CRIMP Crimp socket 1 A Female 32...28 AWG, 501334-0100, Molex Molex PICO-CLASP 系列 母 压接触点, 压接或压缩, 镀锡触点
5013340100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET CRIMP 28-32AWG 5013340100 1.0WtBCrimpRecTermLse Contact; female; 28÷32AWG; PICO-CLASP; tinned; crimped, on cable

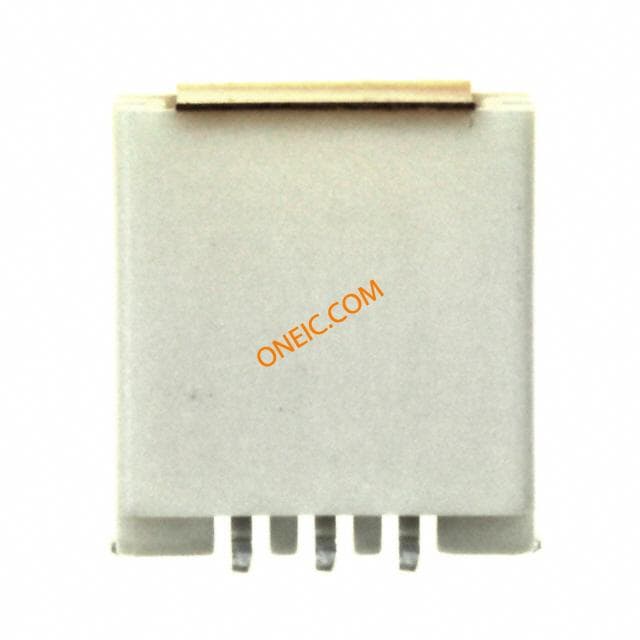

501331-0307
