44300-1000
| Manufacturer | |
| Description | CONN PLUG 10POS 3MM DUAL ROW Microfit 3.0 BMI Panel Mount Plug 10w Headers & Wire Housings 3MM MICRO-FIT Plug House 10 CKT Conn Housing PL 10 POS 3mm Crimp ST Bag MICROFIT3.0BMIPANELMOUNTPLUG10CKT Crimp housing Pitch3 mm Poles 2 x 5 Micro-Fit BMI, 44300-1000, Molex Molex Micro-Fit BMI 系列 2 行 3mm 节距 10 路 直 公 压接连接器外壳 |
| Category |
Business
| Tradename | Micro-Fit 3.0 | Part # Aliases | 0443001000 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 2 x 5 |
| Current Rating (Max) | 5 A | Connector - Voltage Input | Male |
Mechanical
| Color | Black | Depth | 19.1mm |
| Pitch | 0.118" (3.00mm) | Width | 16.2mm |
| Length | 31.84mm | Packaging | Bulk |
| Orientation | 直 | Row Spacing | 0.118" (3.00mm) |
| Contact Type | Male Pin | Mounting Type | Panel Mount |
| Connector Type | Plug | Number of Rows | 2 |
| Housing Material | PET | Number of Contacts | 10 |
| Contact Termination | Crimp | Number of Positions | 10 |
Product Info
| Note | Contacts Not Provided | Type | Plug Housing |
| Gender | Male | Series | 44300 |
| CAD Drawing | 3D CAD Model | Product Type | Wire Housings |
| Connection Method | Wire-Board | Base Product Number | 44300 |
| Application Specifics | Power, Wire-to-Wire, Wire-to-Board | For Use With/Related Products | Micro-Fit 3.0 BMI Plug |
Environmental
| Operating Temperature | -40...+105 °C | ||
Documents & Media
Similar Parts
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD
0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned
0430310011
Molex, LLC
. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. from now!
0447691003
Molex, LLC
. 0447691003 - 10 Position Receptacle Connector 0.118" (3.00mm) Through Hole Gold from Molex. from now!
0430310001
Molex, LLC
. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now!
0430310008
Molex, LLC
. 0430310008 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310009
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
0447641003
Molex
Conn Wire to Board RCP 10 POS 3mm Solder RA Thru-Hole Tray MICROFIT (3.0) BMI RA HDR/FEM
0430310003
Molex, LLC
. 0430310003 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0441331000
Molex
Conn Housing RCP 10 POS 3mm Crimp ST Tray CONN RECEPT 10POS 3MM DUAL ROW
0430310010
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG TIN
0430310004
Molex, LLC
. 0430310004 - Pin Contact Tin 26-30 AWG Crimp Power from Molex. from now!

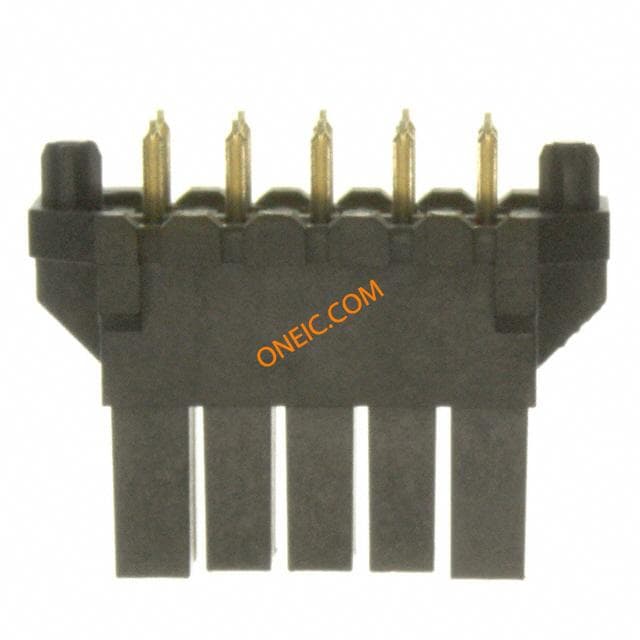

0447691001
Molex
Conn Wire to Board RCP 10 POS 3mm Solder ST Thru-Hole Tray CONN HDR RCPT 10POS VERT TIN PCB

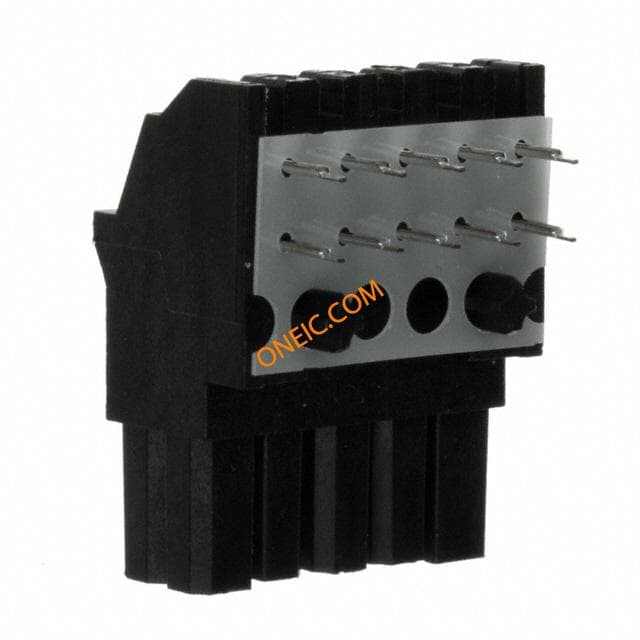

44764-1001
Molex Connector Corporation
CONN HEADER 10POS 3MM R/A TIN Headers & Wire Housings R.A. RECPT 10P tin w/friction pegs Conn Wire to Board RCP 10 POS 3mm Solder RA Thru-Hole Tray

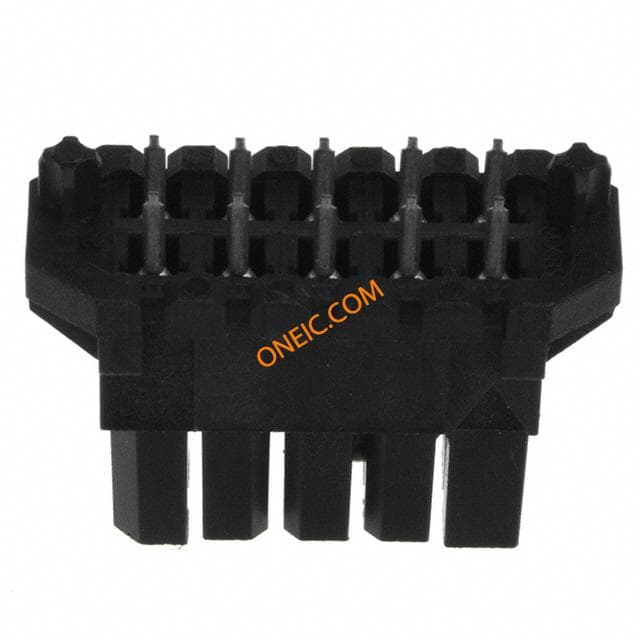

44769-1002
Molex Connector Corporation
CONN HDR RCPT 10POS 3MM VERT PCB Headers & Wire Housings VERT RECPT 10P gold w/friction pegs Conn Wire to Board RCP 10 POS 3mm Solder ST Thru-Hole Tray

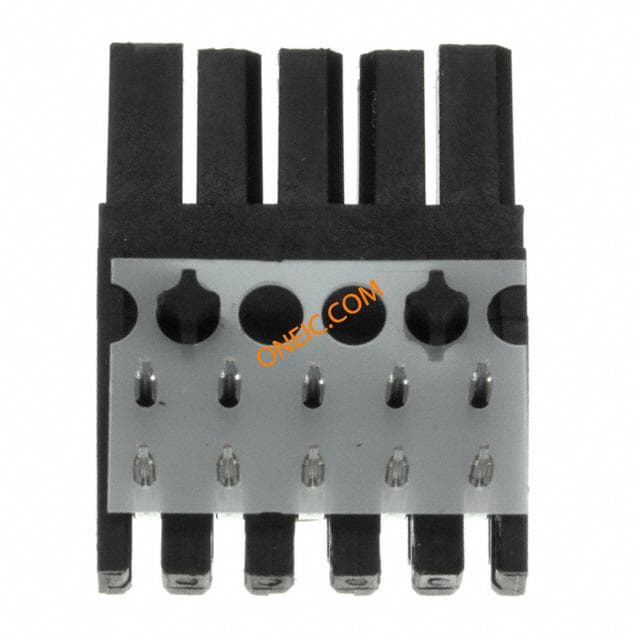

44764-1002
