26-60-4090
| Manufacturer | |
| Description | CONN HEADER 9POS .156 VERT TIN Molex 41791 Series 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT PCB HDR 9P TIN FRICTION LOCK Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Bag WIRE-BOARD CONNECTOR HEADER 9POS, 3.96MM Molex KK 396 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0026604090 41791-0009 |
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 225 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366910 |
Electrical
| Voltage Rating | 250 V ac | Contact Resistance | 6 mohm |
| Current Rating (Max) | 7A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Natural | Depth | 10.01 mm |
| Pitch | 0.156" (3.96mm) | Height | 14.73 mm |
| Weight | 0.0031 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Body Material | :Polyester | Housing Color | Natural |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 35.51 mm | Termination Style | Through Hole |
| Number of Contacts | 9 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 9 | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | 41791 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | 0C to 75C | ||
Documents & Media
Similar Parts
0009482098
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 9POS TIN PCB
0009523098
Molex, LLC
. 0009523098 - 9 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin from Molex. from now!
0009521093
Molex, LLC
. 0009521093 - 9 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482092
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 9POS TIN PCB
0009482093
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 9POS TIN PCB
0009521096
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 9POS TIN PCB
0009485095
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 9POS GOLD PCB
0009485098
molex
Conn Wire to Board HDR 9 POS 2mm Solder ST Thru-Hole Tray CONN RCPT TOP 9POS TIN
0009624097
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 9POS GOLD
09-62-3093
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Bag CONN RECEPT 9POS .156 VERT PCB

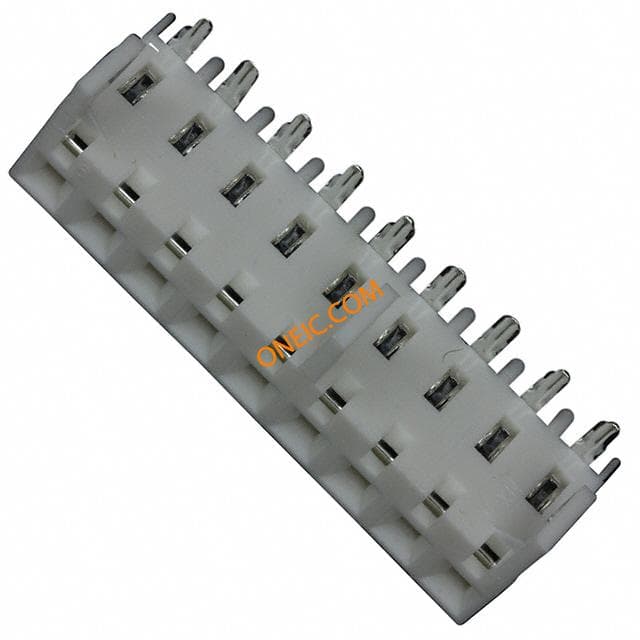

0009481094
Molex
Conn Socket Strip RCP 9 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 9POS .156 R/A PCB
0009481095
Molex, LLC
. 0009481095 - 9 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold from Molex. from now!

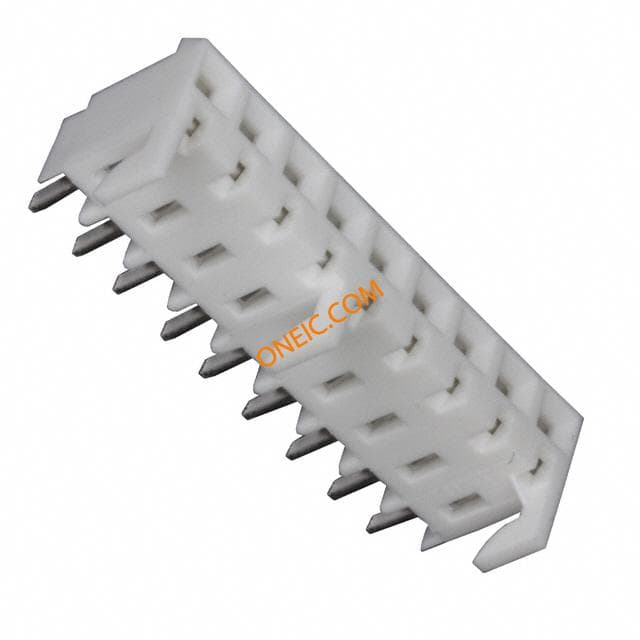

09-48-3096
Molex Connector Corporation
CONN RECEPT 9POS .156 VERT PCB Headers & Wire Housings 9 POS RECEPT .156 TOP PCB GOLD 3.96mm Pitch KK® PC Board Connector, Top Entry, Polyester Connector, Gold (Au) Selective, 9 Circuits
09-50-3091
Molex Connector Corporation
CONN HOUSING 9POS .156 W/RAMP 3.96mm,KK,housing,w/ramp,nylon,9way Headers & Wire Housings HSP 9P W/LKG RAMP UL94V-2 Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount Bag .156 TERMINAL HOUSING; W/LCK RAMP; 9 CIRCUITS Molex KK 396 系列 3.96mm 节距 9 路 直 母 电缆安装 压接连接器外壳
09-50-8093
Molex Connector Corporation
CONN HOUSING 9POS .156 W/POLAR Housing 3.96mm KK, friction ramp, 9way Headers & Wire Housings HSG 9P W/RAMP/RIBS 3.96mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 9 Circuits PLUG & SOCKET HOUSING, RECEPTACLE, 9POS, 3.96MM Molex KK 396 系列 1 行 3.96mm 节距 9 路 直 母 电缆安装 压接连接器外壳

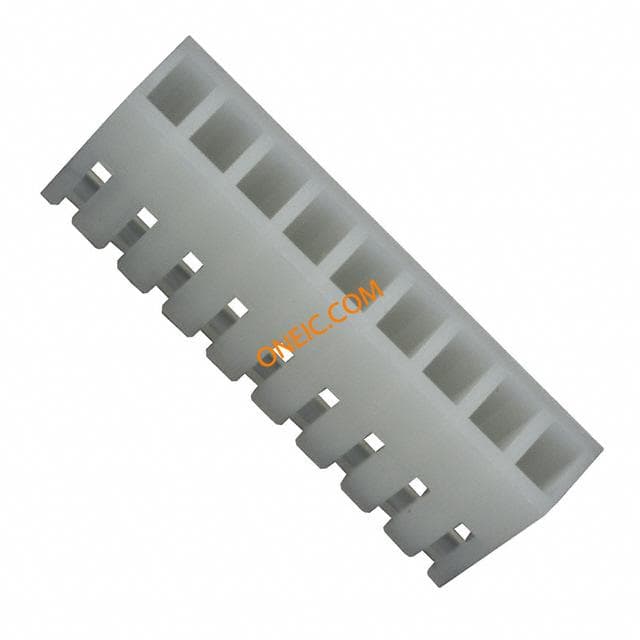

09-50-7091
