22-43-3150
| Manufacturer | |
| Description | CONN RCPT ASSY IDT 15POS 2.5MM Headers & Wire Housings 2.5 Spox IDT Recepta ceptacle White 15Ckt |
| Category |
Business
| Tradename | SPOX | Part # Aliases | 0022433150 A-42219-15A |
| Product Category | Headers & Wire Housings | Standard Package | 1,500 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 1 A |
Mechanical
| Color | Natural | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Wire Type | Discrete |
| Wire Gauge | 24-26 AWG | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 15 |
| Number of Positions | 15 | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Series | 42219 | Features | Closed End |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts
0011219757
molex
IDT - Manual Press IDT - MANUAL PRESS
0011201252
Molex
IDT - Semi-automatic - Bench-Top Terminator AM63131 SPOX HAWK - REBUILT-

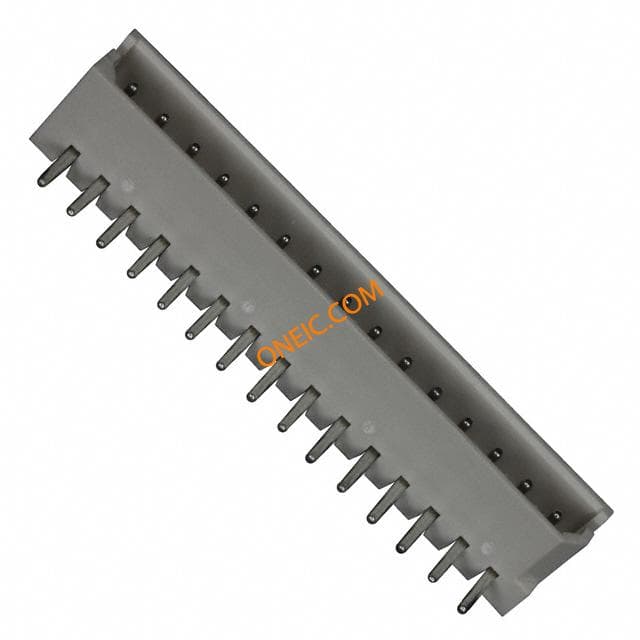

22-05-7155
Molex Connector Corporation
CONN HEADER 15POS 2.5MM R/A TIN Headers & Wire Housings 15P RT ANGL SPOX HDR

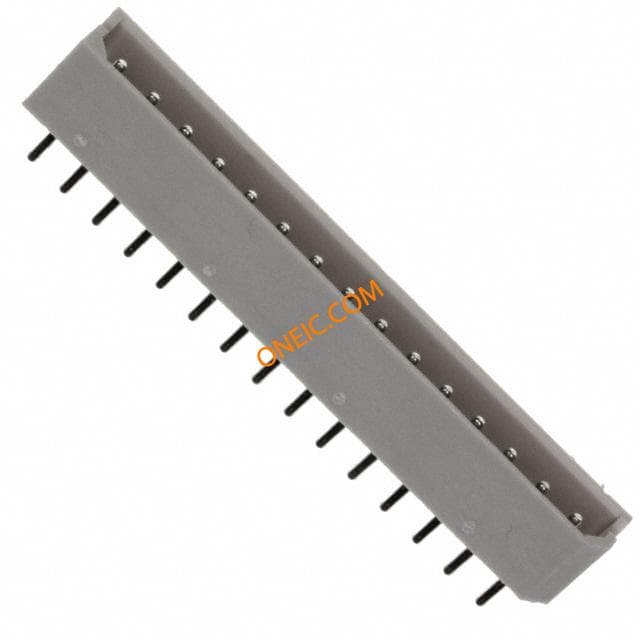

22-03-5155
