22-05-1142
| Manufacturer | |
| Description | CONN HEADER 14POS 2.5MM R/A TIN Headers & Wire Housings 2.5MM RA 14P HDR FRICTION LOCK SN 2.50mm Pitch Wire-to-Board Header, Right Angle, Friction Lock, 14 Circuits, Tin (Sn) Plating WAFER ASSEMBLY, 2.50MM, 14WAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | KK | Part # Aliases | 0022051142 5046-14A |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 250 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :MOLEX - 5046 Series | Voltage Rating | 250 V |
| Current Rating (Max) | 1.5 A, 2 A, 2.5 A, 3 A | ||
Mechanical
| Color | Natural | Pitch | 0.098" (2.50mm) |
| Weight | 0.00001 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Fastening Type | Friction Lock |
| Number of Rows | 1 | Contact Material | Brass |
| Termination Style | Through Hole | Number of Contacts | 14 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 14 |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 200µin (5.08µm) |
Product Info
| Type | Pin Strip | Gender | :Header |
| Series | 5046 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Similar Parts

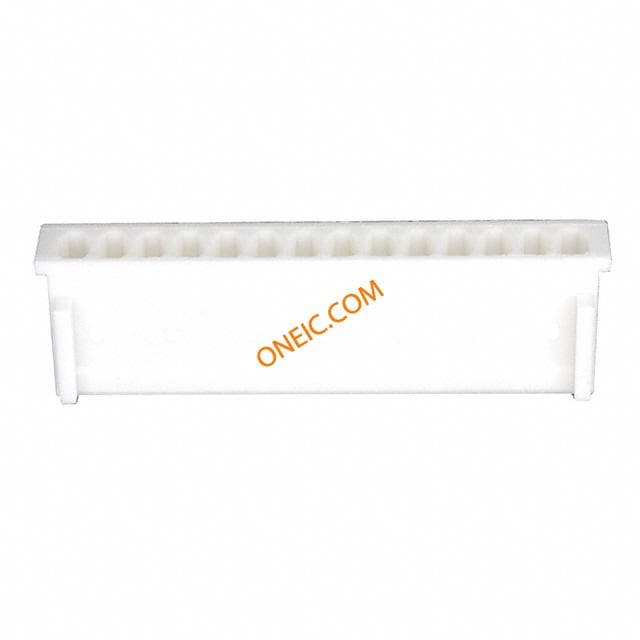

22-01-1144
