点击放大查看
22-05-1112
| Manufacturer | |
| Description | CONN HEADER 11POS 2.5MM R/A TIN Molex 5046 Series 2.5mm Pitch 11 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5MM RA 11P HDR FRICTION LOCK SN Conn Wire to Board HDR 11 POS 2.5mm Solder RA Thru-Hole Bag Molex Mini-Latch 系列 2.5mm节距 11路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | KK | Part # Aliases | 0022051112 5046-11A |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 750 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 250 V | Switch Function | Unlatched |
| Current Rating (Max) | 3A | ||
Mechanical
| Color | Natural | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Orientation | 直角 |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Fastening Type | Friction Lock |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Termination Rows | 焊接 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 11 | Number of Positions | 11 |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 200µin (5.08µm) |
Product Info
| Type | Wire to Board | Series | 5046 |
| Coverage | 无覆盖 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Base Product Number | 5046 |
| Number of Positions Loaded | All | ||
Similar Parts
0503988000
molex
Contact PIN Crimp ST Cable Mount Reel 2.5 W-W CRIMP PIN (CHAIN)
$0.2146
Details
0503988100
Molex, LLC
. 0503988100 - Pin Contact Tin 22-28 AWG Crimp from Molex. from now!
$0.7948
Details

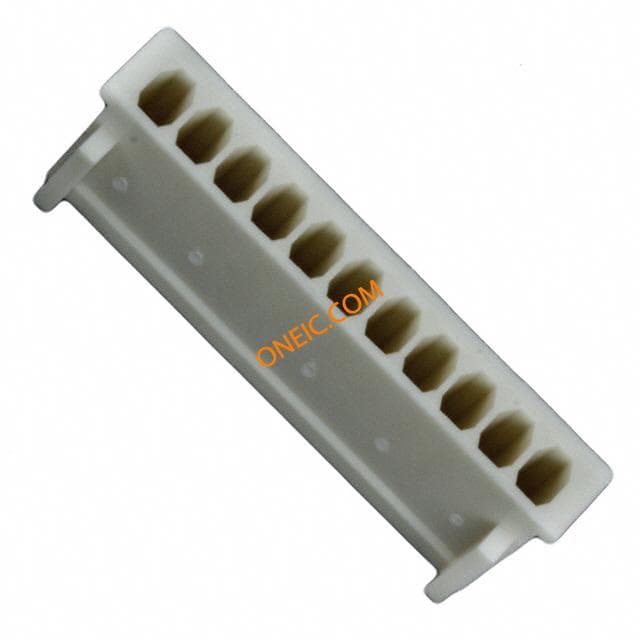

22-01-1114
