15-47-4090

Manufacturer	Molex, LLC
Description	CONN FFC FEMALE 9POS .100 GOLD FFC & FPC Connectors SL FFC/FPC Opt A Fem 15 SAu 9Ckt
Category	Connector SolutionsFFC, FPC ConnectorsFFC/FPC Connectors

对参数有疑问？问 AI 助手

Business

Tradename	C-Grid	Part # Aliases	0015474090 704300183
Product Category	FFC & FPC Connectors	Standard Package	1
Factory Pack Quantity	690

Compliance

RoHS

RoHS Compliant

Material Flammability Rating

UL94 V-0

Electrical

Voltage Rating

250V

Current Rating (Max)

1 A, 2 A

Mechanical

Color	Black	Pitch	0.100" (2.54mm)
Packaging	Tube	Termination	IDC
Mounting Type	Vertical	Connector Type	Receptacle
Contact Finish	Gold	Mounting Style	Cable
Contact Material	Phosphor Bronze	Housing Material	Polyester, Glass Filled
Termination Style	IDC	FFC, FCB Thickness	0.30mm
Number of Contacts	9	Number of Positions	9
Contact Finish Thickness	15µin (0.38µm)

Product Info

Gender	Female	Series	70430
Product Type	Free Hanging

Environmental

Operating Temperature

-40°C ~ 105°C

Documents & Media

PDF Document

015-47-4xx0

PDF Document

0015474090_FFC_FPC_CONNECTORS.pdf

Similar Parts

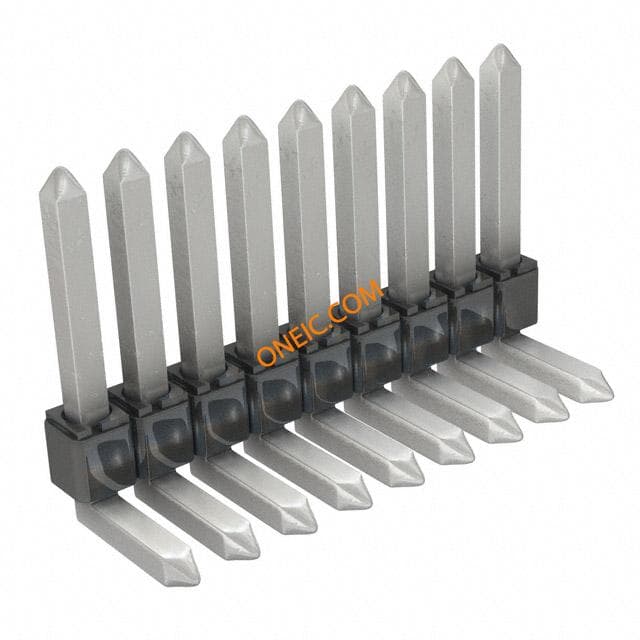

0022288091
