15-24-7061
| Manufacturer | |
| Description | CONN HEADER 6POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 6P DUAL ROW Conn Power RCP 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray |
| Category |
Business
| Tradename | Mini-Fit BMI | Part # Aliases | 0015247061 42385-06B1 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 2400 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 8 A |
Mechanical
| Color | Natural | Pitch | 0.165" (4.20mm) |
| Packaging | Tray | Row Spacing | 0.165" (4.20mm) |
| Termination | Solder | Contact Type | Female Socket |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Tin | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon |
| Termination Style | Through Hole | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Series | 42385 | Features | Board Lock |
| Product Type | Receptacles / Sockets - PCB | Number of Positions Loaded | All |
Documents & Media
Similar Parts
0438790034
molex
Conn Wire to Board HDR 6 POS 4.2mm Solder ST Thru-Hole Tray Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray
15-24-6066
Molex
Headers & Wire Housings VERTICAL HDR 6P w/drainholes CONN HEADER 6POS 4.2MM VERT TIN

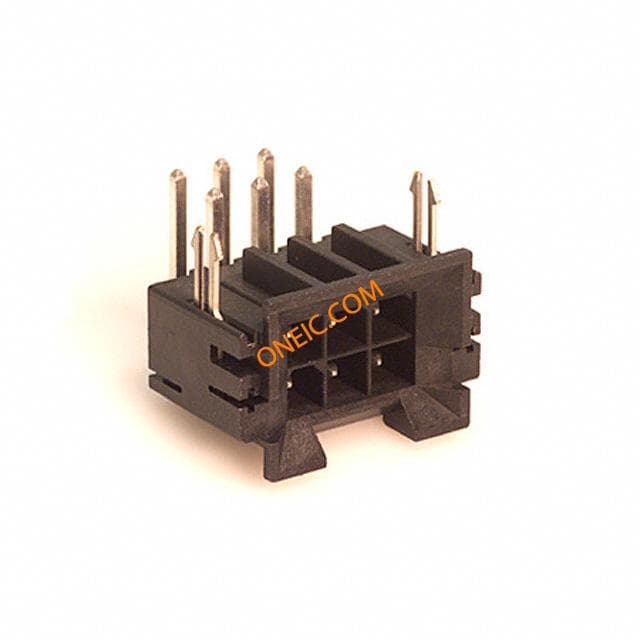

0438100002
Molex
Conn Power M 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS R/A W/CLIP TIN
0440680013
Molex
Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS STR W/CLIP GOLD

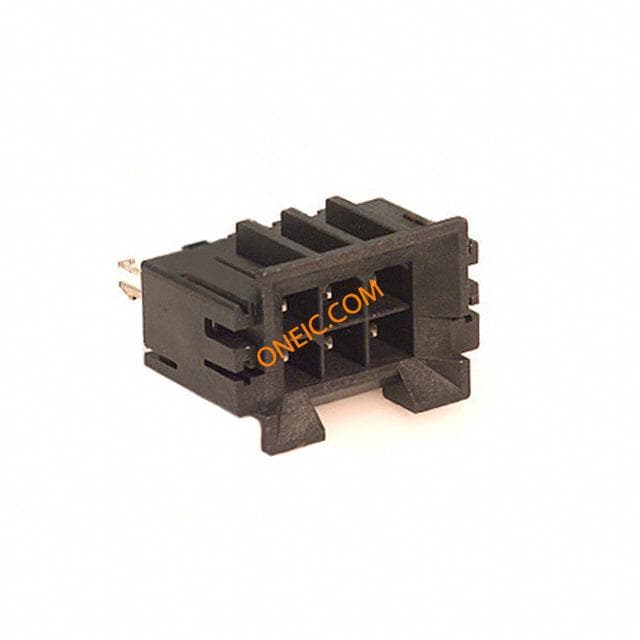

0440680002
Molex
Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Tray CONN HEADER 6POS STR W/CLIP TIN
15-06-0065
Molex Connector Corporation
CONN PLUG 6POS W/PANEL MNT EARS 6w D/R BMI plug housing Headers & Wire Housings PLUG DUAL ROW 6POS w/panel mount ears PLUG & SOCKET CONNECTOR, PLUG 6POS 4.2MM MINIFIT BMI PLUG PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 6 路 直 公 压接连接器外壳
15-06-0066
Molex Connector Corporation
CONN PLUG 6POS W/PANEL MNT EARS Headers & Wire Housings 4.20MM PLUG HSG 6P 2ROW W/PNL MT EARS 4.20mm Pitch Mini-Fit® BMI Plug Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 6 Circuits CONNECTOR, HOUSING, PLUG, 6POS Connector: wire-board; Series: Mini-Fit BMI; plug; male; PIN:6

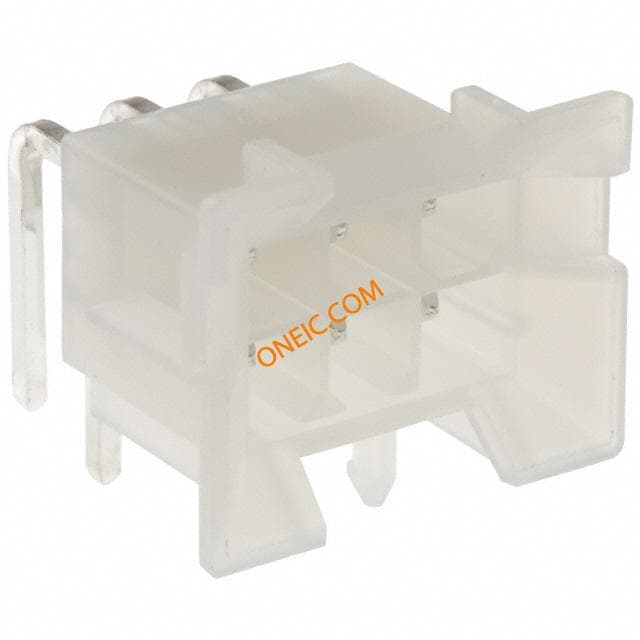

15-24-6060
Molex Connector Corporation
CONN HEADER 6POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 6P Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray MINIFIT BMI RA HDR TIN V-2
15-24-9064
Molex Connector Corporation
CONN HEADER 6POS 4.2MM R/A TIN Headers & Wire Housings R/A HDR DUAL ROW 6P Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Tray

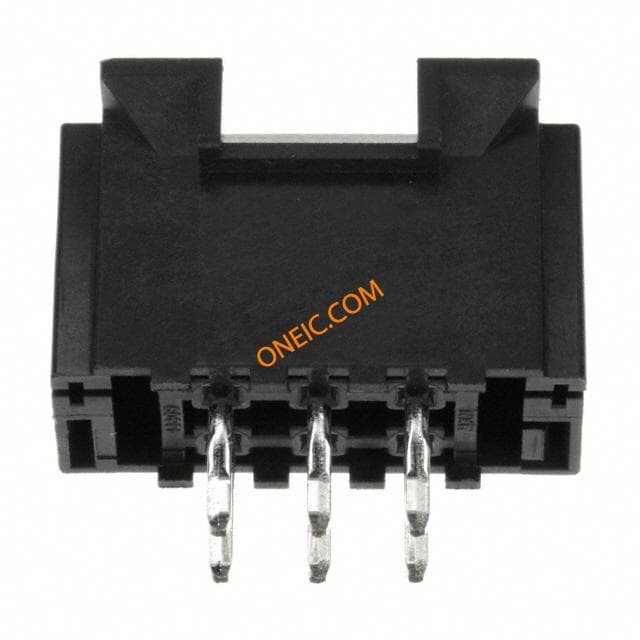

43879-0023
