10-01-3096
| Manufacturer | |
| Description | CONN HOUSING 9POS 5.08MM Crimp Housing 5.08mm SPOX,9way Headers & Wire Housings SPOX 5.08 REC. HSG 9CK519709 5.08mm Pitch SPOX™ Crimp Terminal Housing, 9 Circuits Molex SPOX 系列 5.08mm 节距 9 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | SPOX | Part # Aliases | 0010013096 5197-09 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | Compliant | ||
Mechanical
| Color | Natural | Depth | 16mm |
| Pitch | 0.200" (5.08mm) | Width | 8.85mm |
| Length | 45.64mm | Packaging | Bulk |
| Orientation | 直 | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Rows | 1 | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 9 | Contact Termination | Crimp |
| Number of Positions | 9 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 5197 | Product Type | Receptacles / Sockets - Housings |
| Base Product Number | 5197 | For Use With/Related Products | SPOX Connector |
Documents & Media
Similar Parts
0008701031
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN Conn Contact RCP 1 POS Crimp ST Cable Mount Reel

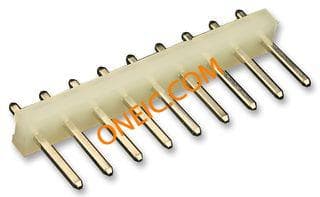

10-02-1097
Molex
Headers & Wire Housings 9CKT KK5.08MM WAFER ASSY 527909A CONN HEADER 9POS 5.08MM VERT TIN
08-70-1028
Molex
Headers & Wire Housings 22-28 CRIMP BULK CONN TERM FEMALE 22-28AWG TIN
0039000021
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
0008701030
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG TIN Conn Contact RCP 1 POS Crimp ST Cable Mount Loose Piece

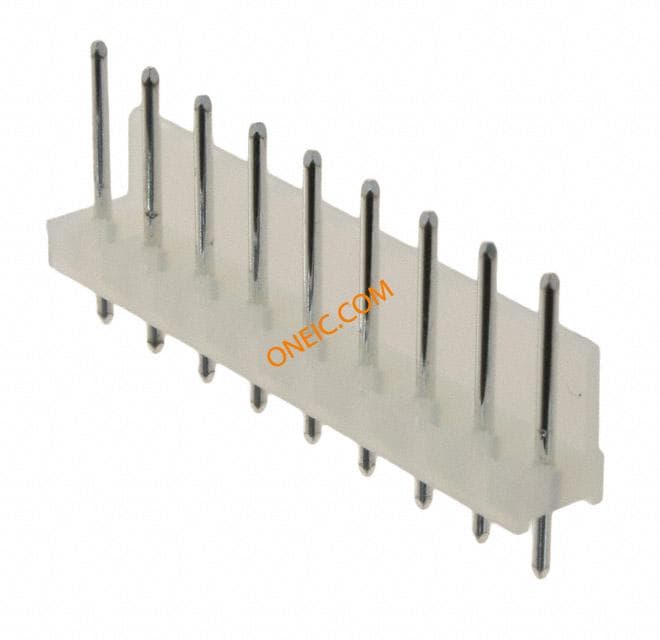

0010085091
