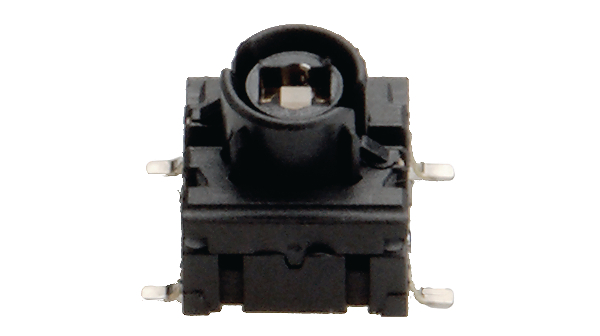

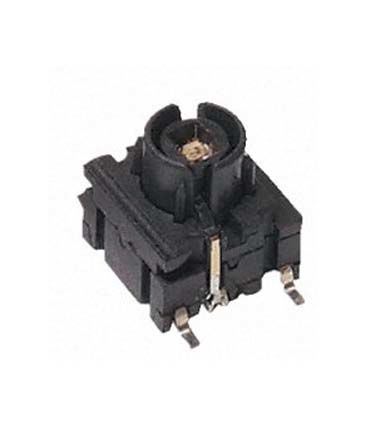

4FSH98222
| Manufacturer | |
| Description | IP67 Red/Green Tactile Tactile Switch, SP-NO 50 mA @ 24 V dc SWITCH, ILLUMEC, SMD, RED/GREEN PCB key Board switch 50 mA Red/green, 25 mA 2.0 V, 4FSH98222, MEC MEC IP67 红色/绿色 按钮 触觉开关 , SP - 常开, 50 mA@ 24 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365080 |
| Material Flammability Rating | :UL94 | ||
Electrical
| Number of Poles | :1 | Current - Cathode | :0.5µA |
| Contact Resistance | :30mohm | Current - Max/Contact | :50mA |
| Insulation Resistance | :10Mohm | Switch Function/Rating | Momentary |
| Contact Rating (Current) | 50 mA @ 24 V dc | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :24V | ||
Mechanical
| Depth | :12.5mm | Width | :10.3mm |
| Length | :10.4mm | Weight | 0.007 |
| Material | :PPS | LED Color | :Red / Green |
| Lead Spacing | :7.62mm | Pitch - Post | :10.16mm |
| Travel Range | :1mm | Actuator Type | Tactile |
| Mounting Type | :SMD | Terminal Type | Through Hole |
| Actuator Color | Red/Green | Operating Force | 2.5 N |
| Contact Material | Gold, Silver | Illumination Color | :Green, Red |
| Actuator Style/Size | :Plunger | Number of Positions | :10000000 |
| Color - Actuator/Cap | :- | Switch Actuation Level | :Plunger |
| Contact Layout, Typical | SP-NO | ||
Product Info
| Series | :4F | Illumination | Yes |
Environmental
| Seal Rating | IP67 | Mechanical Life | 10000000Operations |
| NEMA Frame Size | :IP67 | Switching Cycles | :10000000 |
| Operating Temperature | +125°C | ||
