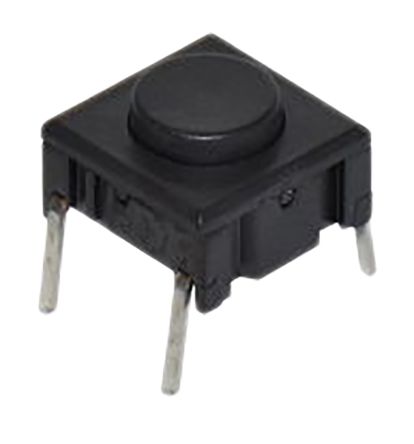

3CTH9
| Manufacturer | |
| Description | IP67 SP Keyboard Switch, 50 @ 24 V dc mA, -40 to +160°C PCB Switch 24 VDC 50 mA Through Hole black, 3CTH9, MEC MEC IP67 黑色 触觉开关 , 单刀单掷 印刷电路板 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Voltage - Test | 250 | Voltage Rating | 24 |
| Switch Function | 瞬间 | Contact Resistance | 10mΩ |
| Current Rating (Max) | 50 mA | Switch Function/Rating | Momentary |
| Contact Rating (Current) | 50 @ 24 V dc mA | ||
Mechanical
| Mounting Type | Through Hole | Actuator Color | 黑色 |
| Actuation Force | 3.0 N | Operating Force | 3 N |
| Contact Material | Ag | Color - Background | black |
| Color - Connectors | black | Contact Layout, Typical | Single pole |
Product Info
| Design | Through-Hole | Series | Multimec |
| Function | Y | Switch Type | Momentary function |
Environmental
| Seal Rating | IP67 | Mechanical Life | 10000000Operations |
| Ingress Protection | IP67 | Operating Temperature | +160°C |
