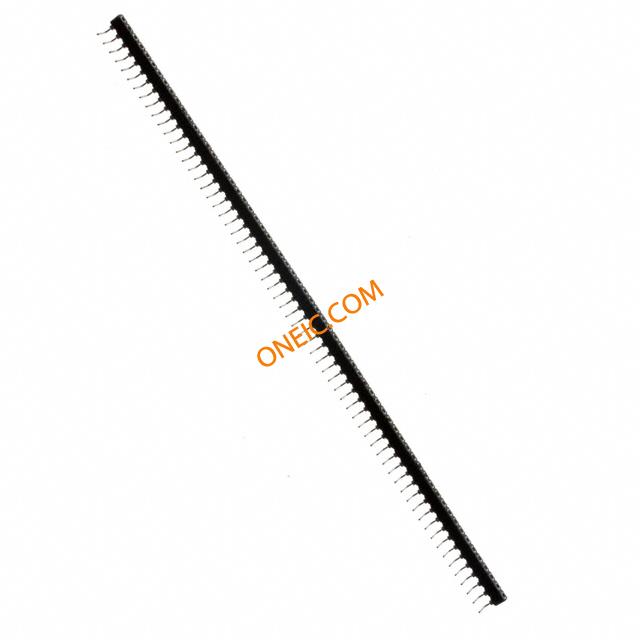

399-43-164-10-003000
| Manufacturer | |
| Description | Conn Socket Strip SKT 64 POS 2.54mm Solder RA Thru-Hole CONN SOCKET 64PIN R/A .100 SOLDR Headers & Wire Housings 64 POS R/ANGLE .100 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Standard Package | 3 |
| Factory Pack Quantity | 3 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 3 |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 MOhms |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Color | Black | Depth | 5.58 |
| Pitch | 0.100" (2.54mm) | Height | 2.54 |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Beryllium Copper Alloy | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 162.56 | Termination Style | Through Hole |
| Number of Contacts | 64 | Number of Positions | 64 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
