346-99-164-41-013000
| Manufacturer | |
| Description | Conn SIP Socket Strip SKT 64 POS 2.54mm Press Fit ST Thru-Hole SOCKET SLDRLSS PRESSFIT SIP64POS IC & Component Sockets 64P SG IN LN SKT COM SOLDERLESS PRESS FIT |
| Category |
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 3 | Factory Pack Quantity | 3 |
Compliance
| RoHS | No | EU RoHS | Not Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 3 |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 2.54 | Pitch | 0.100" (2.54mm) |
| Height | 4.39 | Packaging | Tube |
| Termination | Press Fit | Housing Color | Black |
| Mounting Type | Through Hole | Contact Finish | Tin-Lead Over Nickel |
| Mounting Style | Press Fit | Number of Rows | 1 |
| Contact Material | Beryllium Copper Alloy | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 162.56 | Number of Contacts | 64 |
| Contact Finish Thickness | 200µin (5.08µm) | Number of Positions or Pins (Grid) | 64 (1 x 64) |
Product Info
| Type | SIP Socket Strip | Gender | SKT |
| Features | Closed Frame | ||
Documents & Media
Similar Parts
342-90-164-00-591000
Mill-Max
Headers & Wire Housings 64P HDR STRIPS .018/ .018 SOLDER TAILS Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole HEADER SOLDERTAIL SIP 64POS
350-90-164-00-006000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole HEADER SOLDERTAIL SIP 64POS Headers & Wire Housings 64P STRAIGHT PIN HDR

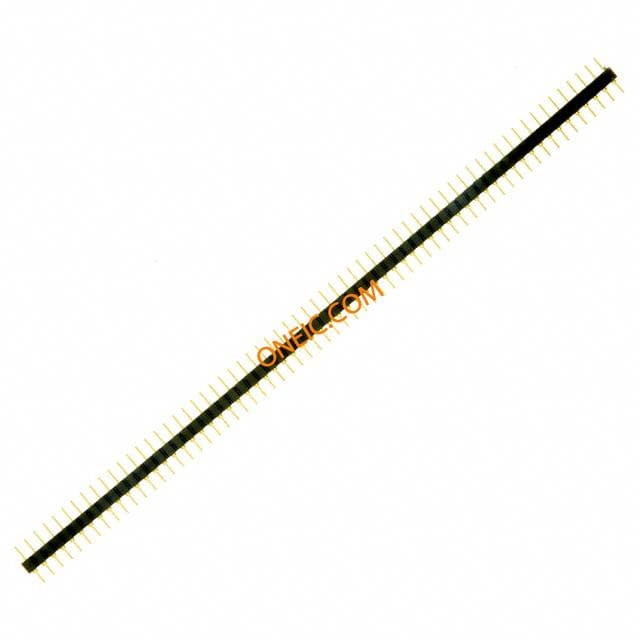

350-10-164-00-006000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS .100 SGHT TAIL Headers & Wire Housings 64 POSITION BOARD TO BOARD CONNECTOR, HEADER, 64POS, 1ROW
350-10-164-00-106000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST SMD CONN HEADER 64POS .100 SMT Headers & Wire Housings .1 64POS SMT .189
342-10-164-00-593000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS .100 L.585 Headers & Wire Housings 64 POS L=.585

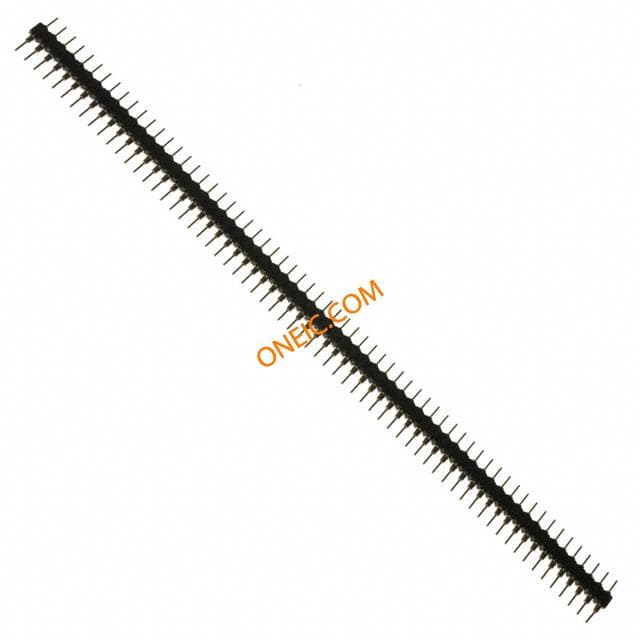

342-10-164-00-591000
Mill-Max
Conn Unshrouded Header HDR 64 POS 2.54mm Solder ST Thru-Hole CONN HEADER 64POS .100 L.210 Headers & Wire Housings 64 POS L=.120 CONNECTOR, HEADER, 64POS, 1ROW, 2.54MM

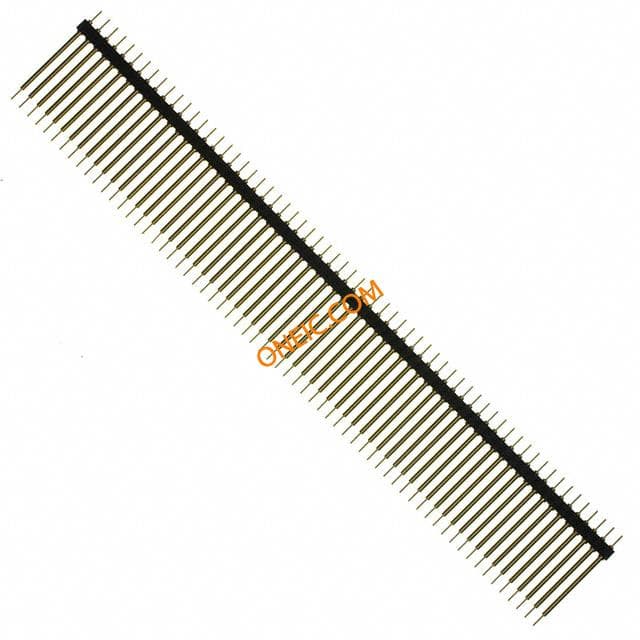

342-10-164-00-594000
