342-90-120-00-592000
| Manufacturer | |
| Description | Headers & Wire Housings 20P HDR STRIPS .018/ .018 SOLDER TAILS Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole HEADER SOLDERTAIL SIP 20POS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | No | EU RoHS | Not Compliant |
Electrical
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 11.69 |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Post, Extended | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | DIP, DIL - Header |
| Contact Finish | Tin-Lead Over Nickel | Number of Rows | 1 |
| Contact Material | Brass Alloy | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 50.8 | Termination Style | Through Hole |
| Number of Contacts | 20 | Number of Positions | 20 |
| Contact Finish Thickness | 200µin (5.08µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | 342 | Product Type | Headers |
Documents & Media
Similar Parts
712-13-120-41-001000
Mill-Max
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole CARRIER W/ SOCKETS SIP 20POS IC & Component Sockets 20P SINGLE IN LINE SKT SINGLE ROW
304-13-120-41-770000
Mill-Max
Conn SIP Socket Strip SKT 20 POS 2.54mm Press Fit ST Thru-Hole SOCKET SOLDERLESS SIP 20POS IC & Component Sockets 20P SGL IN LINE SKT SOLDERLESS PRESS FIT
315-13-120-41-003000
Mill-Max
Conn SIP Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole SOCKET LOW PROFILE SIP 20POS IC & Component Sockets 20P SINGLE IN LINE SKT VERY LOW PROFILE

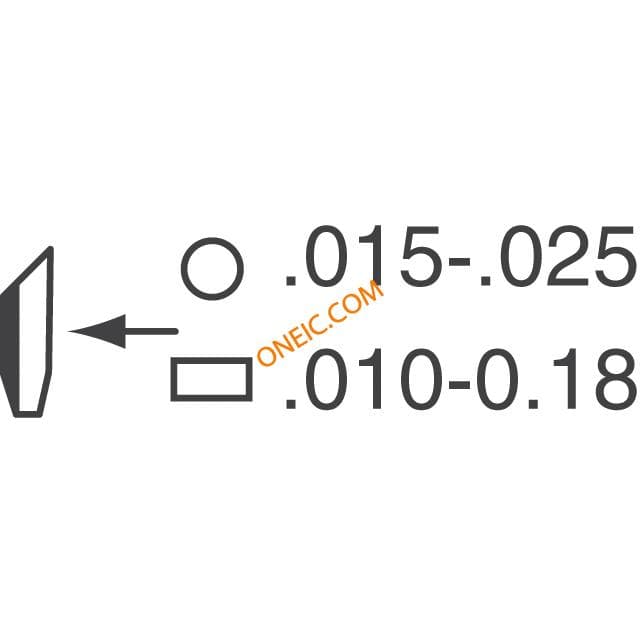

310-43-120-41-001000
Mill-Max
Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Bulk CONN SOCKET STRIP 20PIN SOLDER IC & Component Sockets 20P SOLDER TAIL SIP SOCKET, 20POS, THROUGH HOLE

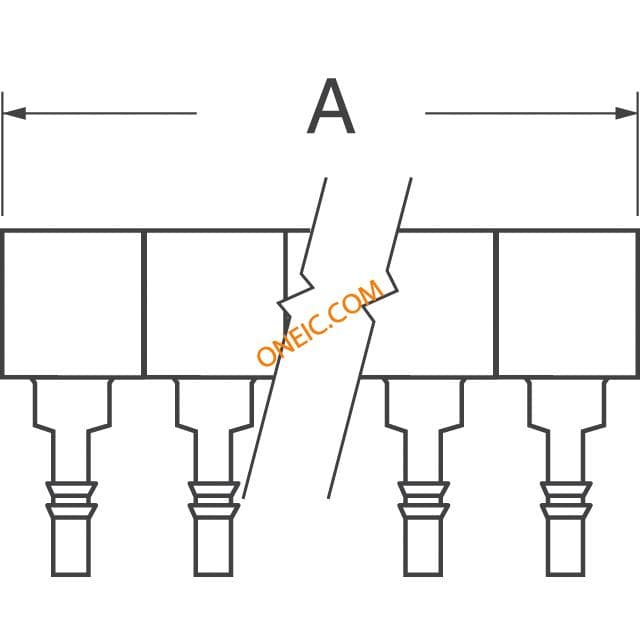

346-43-120-41-013000
