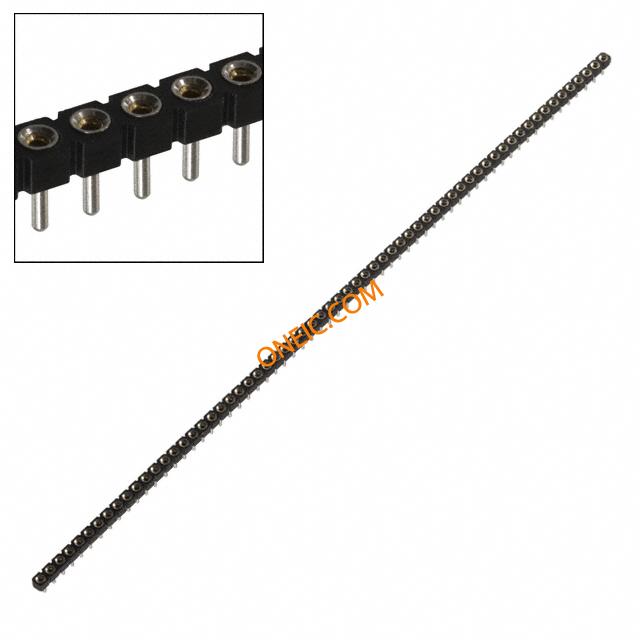

315-43-164-41-003000
| Manufacturer | |
| Description | Conn SIP Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 64PIN ULTRA LOPRO IC & Component Sockets 64 POS LOW PRO .1 |
| Category |
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 3 | Factory Pack Quantity | 3 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 150VDC|100VAC |
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 2.41 |
| Packaging | Tube | Termination | Solder |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Package / Case | SIP | Contact Material | Beryllium Copper Alloy |
| Housing Material | Polychlorinated Terphenyl | Length - Overall | 162.56 |
| Termination Style | Solder Tail | Number of Contacts | 64 |
| Number of Positions | 64 | Contact Finish Thickness | 30µin (0.76µm) |
| Number of Positions/Bay/Row | All | ||
Product Info
| Type | SIP Socket Strip | Gender | SKT |
| Series | 315 | Features | SIP socket, ultra low profile |
| Output Configuration | Through Hole | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
