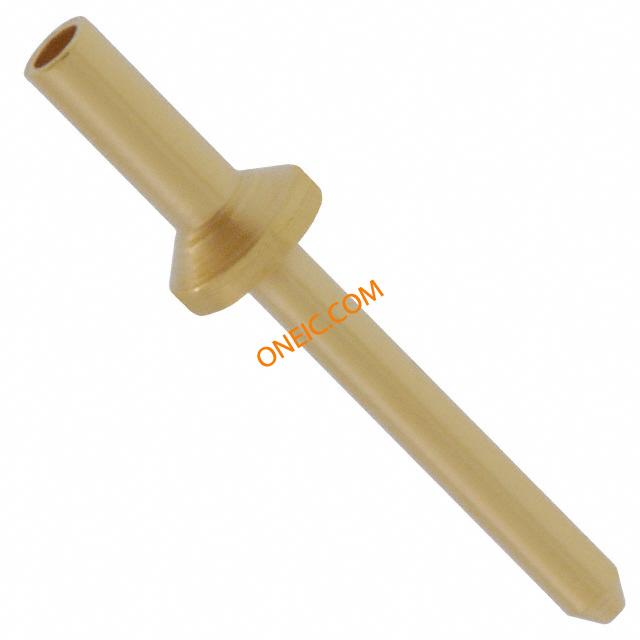

3117-2-00-21-00-00-08-0
| Manufacturer | |
| Description | Circuit Board Hardware - PCB PC PIN SWAG .062 PCB Contact SKT Solder ST Thru-Hole Bulk CONN PC PIN CIRC .024DIA GOLD Conn Contact RCP 1 POS Solder ST Thru-Hole Bulk SWAGE TERMINAL PIN, PC BOARD PrintedCircuitPin;GoldoverNickel |
| Category |
Business
| Product | Pins | Lead Time | 20 Days |
| Subcategory | Connector Contact | Product Category | Circuit Board Hardware - PCB |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Mechanical
| Color | Gold | Depth | 1.52 |
| Height | 1.52 | Length | 0.291 in |
| Weight | 0.002 | Plating | Gold over Nickel |
| Material | Brass | Packaging | Bulk |
| Insulation | Non-Insulated | Shield Type | No |
| Termination | Solder | Length - Pin | :0.188" |
| Length - Tail | 0.188" (4.78mm) | Mounting Type | Through Hole |
| Terminal Type | Single End | Connector Type | Connector Socket |
| Contact Finish | Gold Over Nickel | Mounting Style | PCB |
| Board Thickness | 0.062 in | Flange Diameter | 0.060" (1.52mm) |
| Material - Body | BrassAlloy | Contact Material | Brass Alloy |
| Length - Overall | 0.291 in | Primary Material | PCPin |
| Diameter - Inside | 0.024 in | Diameter - Outside | 0.06 in |
| Number of Contacts | :1 | Contact Termination | :Solder |
| Mounting Hole Diameter | 0.035 in | Pin Size - Below Flange | 0.024" (0.61mm) Dia |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Pins | Gender | SKT |
| Series | :- | Features | Swage |
| Manufacturer | 3117Series | For Use With/Related Products | :0.062 " thick boards |
