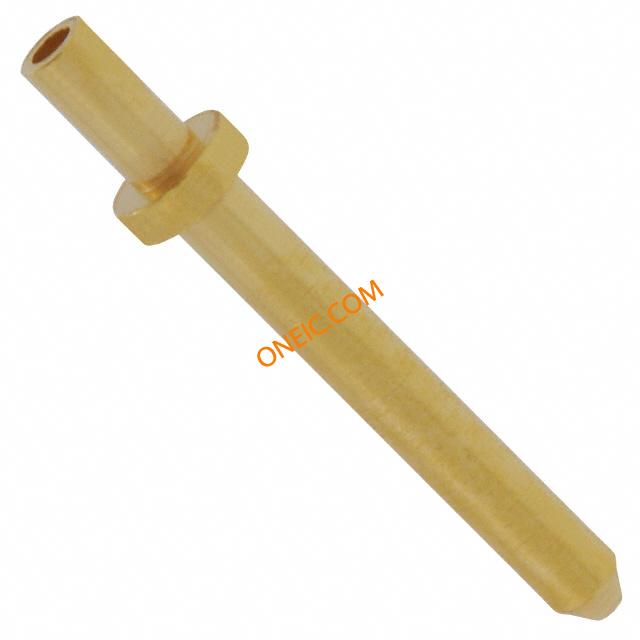

3103-2-00-21-00-00-08-0
| Manufacturer | |
| Description | Circuit Board Hardware - PCB PC PIN SWAG .062 PCB Contact PIN ST Bulk CONN PC PIN CIRC .040DIA GOLD TEST POINT PIN, PCB |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Pins | Product Category | Circuit Board Hardware - PCB |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Mechanical
| Depth | 1.78 | Height | 1.78 |
| Length | 0.402 in | Weight | 0.002 |
| Plating | Gold over Nickel | Material | Brass |
| Packaging | Bulk | Tip Shape | :Radius |
| Insulation | Non-Insulated | Termination | Swage |
| Contact Type | Signal | Length - Tail | 0.300" (7.62mm) |
| Mounting Type | Straight | Terminal Type | Single End |
| Connector Type | Connector Headers and PCB Recepta... | Contact Finish | Gold Over Nickel |
| Board Thickness | 0.062 in | Flange Diameter | 0.070" (1.77mm) |
| Contact Material | Brass Alloy | Length - Overall | 0.402 in |
| Diameter - Inside | 0.04 in | Diameter - Outside | 0.07 in |
| Mounting Hole Diameter | 0.043 in | Pin Size - Below Flange | 0.040" (1.02mm) Dia |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Pins | Gender | PIN |
| Leaded Process Compatible | :Yes | For Use With/Related Products | :0.062 " thick boards |
