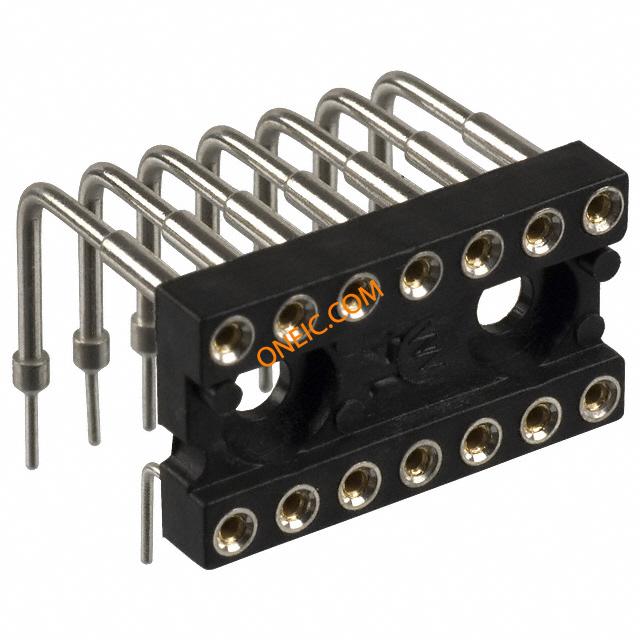

299-93-314-10-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 14 POS 2.54mm Solder RA Thru-Hole Tube SOCKET RT ANGLE 14PIN DIP .300 IC & Component Sockets 14 POS .3 R/ANGLE Socket,DIP;14Pins;Closed;SolderTail;0.3In.;RightAnglePCB;Gold;0.3In. |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DIP / SIP Sockets | Lead Time | 20 Days |
| Subcategory | Connector Socket | Product Category | IC & Component Sockets |
| Standard Package | 29 | Factory Pack Quantity | 29 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Not Compliant |
| Rad Hardened | No | ||
Electrical
| Voltage Rating | 150VDC/100VAC | Contact Resistance | 10 mohm |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 Mohm |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 13.21 mm | Pitch | 0.100" (2.54mm) |
| Height | 10.1 mm | Packaging | Tube |
| Row Spacing | 7.62 mm | Termination | Solder |
| Mounting Type | Through Hole | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Pins | 14 (2 x 7) |
| Number of Rows | 2 | Contact Material | Beryllium Copper Alloy |
| Housing Material | Polychlorinated Terphenyl | Length - Overall | 17.7 mm |
| Termination Style | Solder Pin | Number of Contacts | 14 |
| Insulation Material | Polychlorinated Terphenyl | Number of Positions | Not Required |
| Contact Finish Thickness | 30µin (0.76µm) | Number of Positions or Pins (Grid) | 14 (2 x 7) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Series | 299 | Features | Closed Frame |
| Main Purpose | Closed Frame | Output Configuration | Through Hole, Right Angle, Horizontal |
| For Use With/Related Products | 299-43-314-10-001000 | ||
Environmental
| Operating Temperature | -55C to 125C | ||
