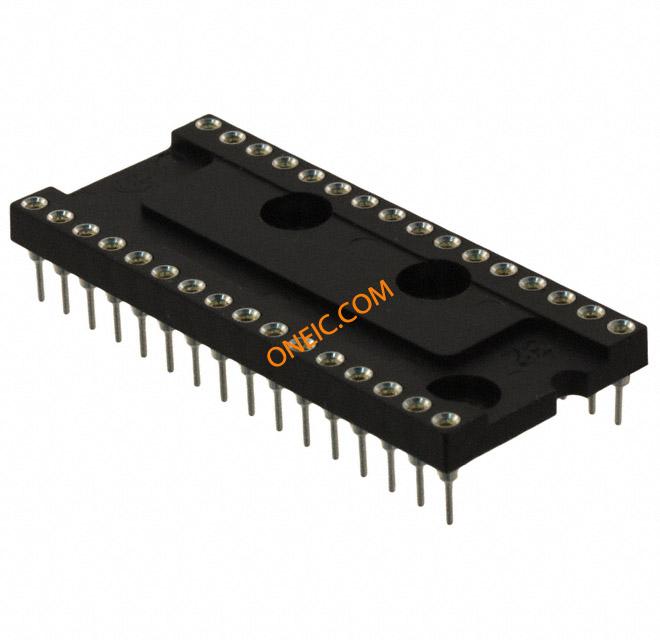

210-93-632-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 32DIP .600 TIN IC & Component Sockets 32P SOLDER CLOSED Socket,DIP;Closed;4-Finger;32Pos.;0.100In.cen.;Solder;0.6In.;30muIn.Gold;0.12 |
| Category |
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 12 | Factory Pack Quantity | 12 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | EU RoHS | Not Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 1 kV | Contact Resistance | 10 |
| Current Rating (Max) | 3 A | Insulation Resistance | 10000 |
| Voltage - Input (Min) | 150VDC|100VAC | ||
Mechanical
| Depth | 17.78 | Pitch | 0.100" (2.54mm) |
| Height | 4.19 | Base Type | Closed Frame |
| Packaging | Tube | Row Spacing | 15.24 mm |
| Termination | Solder | Mounting Type | Through Hole |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | DIP |
| Contact Material | Beryllium Copper Alloy | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 40.64 | Termination Style | Solder Tail |
| Number of Contacts | 32 | Insulation Material | Polychlorinated Terphenyl |
| Contact Finish Thickness | 30µin (0.76µm) | Number of Positions or Pins (Grid) | 32 (2 x 16) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Features | Closed Frame | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
