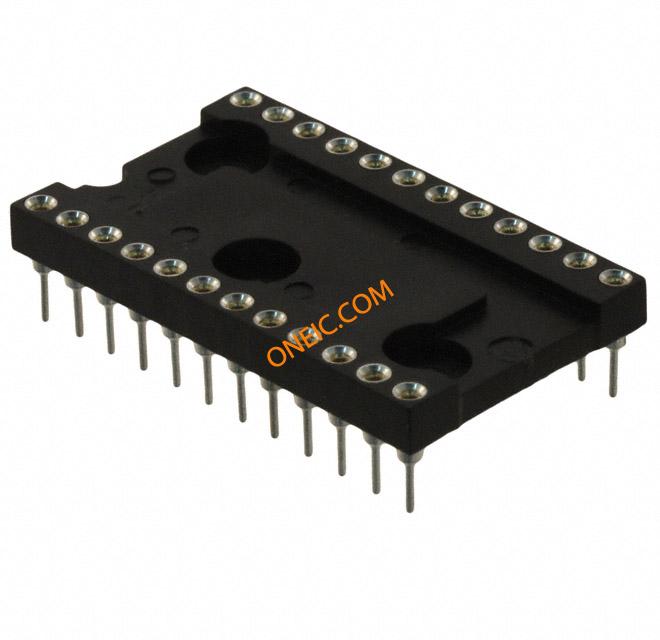

210-13-624-41-001000
| Manufacturer | |
| Description | Conn DIP Socket SKT 24 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC CLOSED FRM .600 24POS IC & Component Sockets 24P DIP SKT SOLDER TAIL |
| Category |
Business
| Product | DIP / SIP Sockets | Lead Time | 20 Days |
| Subcategory | Connector Socket | Product Category | IC & Component Sockets |
| Standard Package | 16 | Factory Pack Quantity | 16 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 3 |
| Insulation Resistance | 10000 | Voltage - Input (Min) | 150VDC |
Mechanical
| Depth | 17.7 | Pitch | 0.100" (2.54mm) |
| Height | 4.19 | Packaging | Tube |
| Row Spacing | 15.24 | Termination | Solder |
| Mounting Type | Through Hole | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 30.5 | Termination Style | Solder Pin |
| Number of Contacts | 24 | Insulation Material | Polychlorinated Terphenyl |
| Contact Finish Thickness | 30µin (0.76µm) | Number of Positions or Pins (Grid) | 24 (2 x 12) |
Product Info
| Type | DIP Socket | Gender | SKT |
| Features | Closed Frame | ||
