142-10-640-00-592000
| Manufacturer | |
| Description | Conn DIP Adapter HDR 40 POS 2.54mm Solder ST Thru-Hole Tube HEADER OPEN .018"DIA .600 40POS Headers & Wire Housings 40P DIP HDR OPEN FRAME .335L |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Insulation Resistance | 10000 | Voltage - Input (Min) | 150VDC|100VAC |
Mechanical
| Color | Black | Depth | 17.7 |
| Pitch | 0.100" (2.54mm) | Height | 11.69 |
| Packaging | Tube | Row Spacing | 0.600" (15.24mm) |
| Termination | Solder | Contact Type | Post, Extended |
| Mounting Type | Through Hole | Connector Type | DIP, DIL - Header |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Brass Alloy | Housing Material | Polychlorinated Terphenyl |
| Length - Overall | 50.8 | Number of Contacts | 40 |
| Insulation Material | Polychlorinated Terphenyl | Number of Positions | 40 |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Type | DIP Adapter | Gender | HDR |
Documents & Media
Similar Parts
110-93-640-41-801000
Mill-Max
Conn DIP Socket SKT 40 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET W/CAP TIN MS ST 40 PIN Socket; DIP;Open;4-Finger;40 Pos.;Solder;0.6In.;30muIn. Gold;50V;3A;-25 to 85deg IC & Component Sockets 40P TIN PIN GLD CONT Socket,DIP;Open;4-Finger;40Pos.;Solder;0.6In.;30muIn.Gold;50V;3A;-25to85deg
126-93-640-41-002000
Mill-Max
Conn DIP Socket SKT 40 POS 2.54mm Wire Wrap ST Thru-Hole Tube SOCKET IC OPEN PLUGBL .600 40POS IC & Component Sockets 40P PLUGABLE WRAPOST TAIL SKT .543L

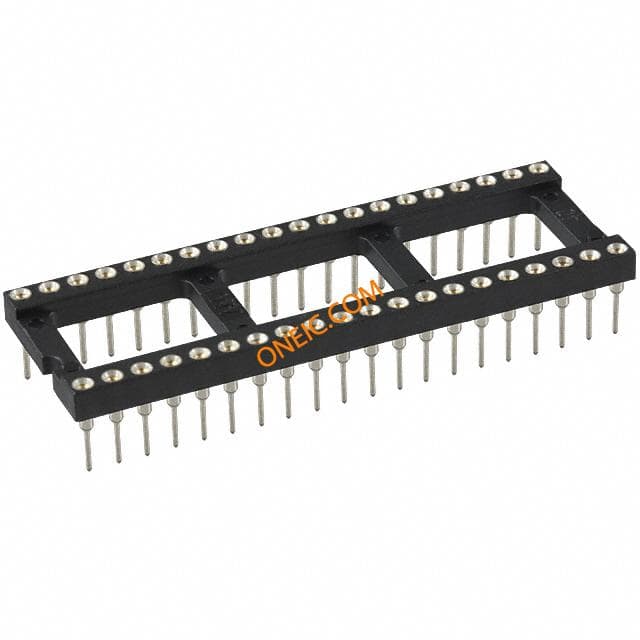

111-93-640-41-001000
Mill-Max
Conn DIP Socket SKT 40 POS 2.54mm Solder ST Thru-Hole Tube IC SOCKET 40DIP .600 TIN Socket; DIP;Open;4-Finger;40 Pos.;Solder;PCB;0.6In.;Ber. Copper;30muIn. Gold;3A IC & Component Sockets 40P LONG SOLDER TAIL Socket,DIP;Open;4-Finger;40Pos.;Solder;PCB;0.6In.;Ber.Copper;30muIn.Gold;3A
210-13-640-41-001000
Mill-Max
Conn DIP Socket SKT 40 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC CLOSED FRM .600 40POS IC & Component Sockets 40P GOLD CONT

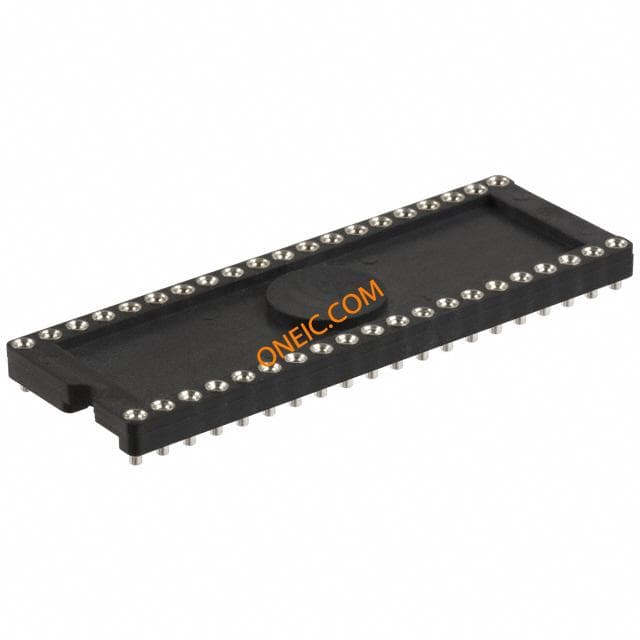

214-99-640-01-670800
