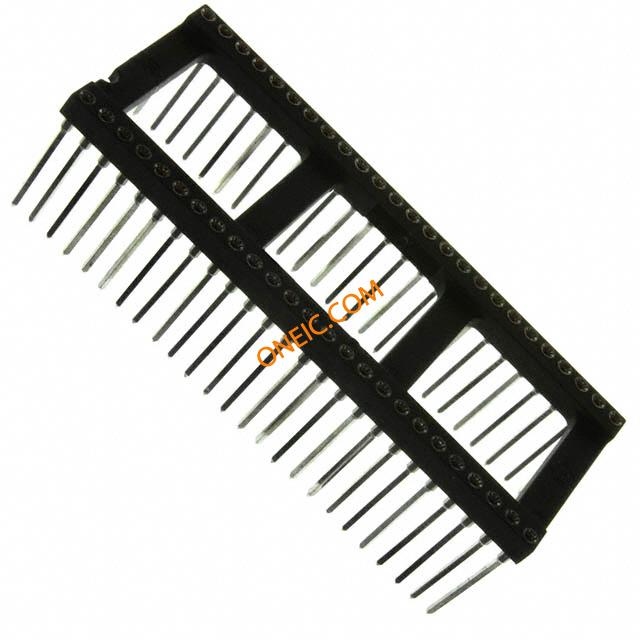

123-93-950-41-001000

Manufacturer	Mill-Max Mfg. Corp.
Description	Conn DIP Socket SKT 50 POS 2.54mm Wire Wrap ST Thru-Hole Tube 50 PIN W/W IC SOCKET GOLD .900 IC & Component Sockets 50P TIN PIN GLD CONT
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product	DIP / SIP Sockets	Product Category	IC & Component Sockets
Standard Package	8	Factory Pack Quantity	8

RoHS

Contains lead / RoHS non-compliant

EU RoHS

Not Compliant

Contact Resistance	10	Current Rating (Max)	3
Insulation Resistance	10000	Voltage - Input (Min)	150VDC

Depth	25.4	Pitch	0.100" (2.54mm)
Height	4.9	Packaging	Tube
Row Spacing	22.86	Termination	Wire Wrap
Mounting Type	Through Hole	Contact Finish	Gold Over Nickel
Mounting Style	Through Hole	Number of Rows	2
Contact Material	Beryllium Copper	Housing Material	Polychlorinated Terphenyl
Length - Overall	63.5	Termination Style	Solder Pin
Number of Contacts	50	Insulation Material	Polychlorinated Terphenyl
Contact Finish Thickness	30µin (0.76µm)	Number of Positions or Pins (Grid)	50 (2 x 25)

Type	DIP Socket	Gender	SKT
Features	Open Frame
